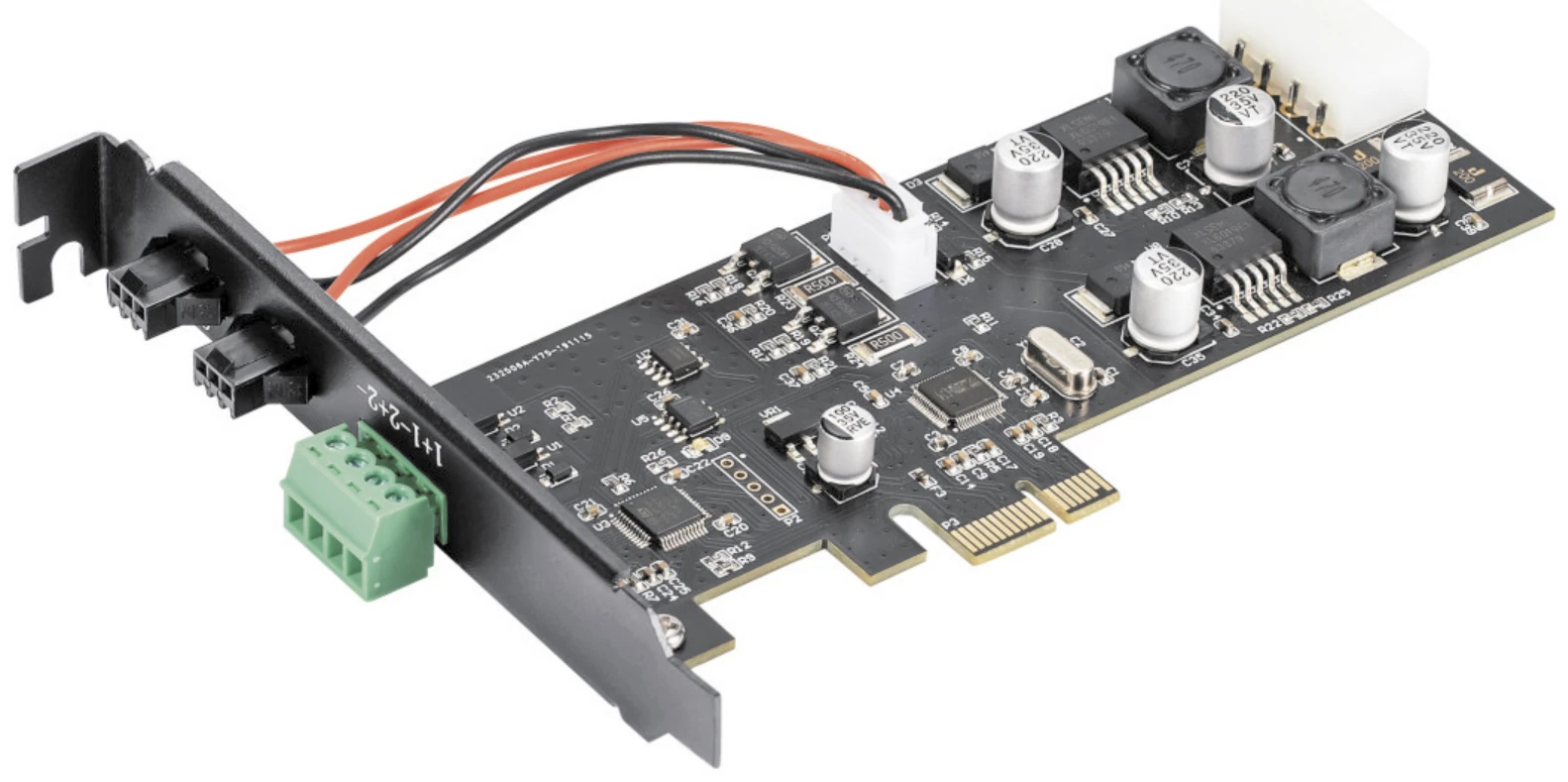

PCIE light control card, PCIe (LS-PCIE2448A-2T)
Model LS-PCIE2448A-2T
Light control card with a standard PCIe-X1 interface (fits PCIe-X4, X8 and X16 slots), powered from the host computer, two 24 V outputs of up to 1 A each, controlled through a serial COM port created by the driver, 0-255 brightness with constant-on / constant-off modes and optocoupler external trigger.
Features
- Standard PCIe-X1 interface, compatible with PCIe-X4, PCIe-X8 and PCIe-X16 slots; powered by the host power supply; universal, highly integrated, size fits mainstream computers and industrial PCs
- Dual-channel output, 24V per channel, max 1A per channel
- Serial communication: after the driver is installed a serial port is created automatically; commands sent to that COM port control the card and the lights
- 0-255 level adjustable brightness, constant-on / constant-off modes
- Supports external trigger; trigger input with high-speed optocoupler design, fast and reliable
Specifications
| Model | LS-PCIE2448A-2T |
|---|---|
| Operating temp/humidity | 0~40 °C, 20~85 %RH (non-condensing) |
| Storage temp/humidity | 20~60 °C, 20~85 %RH (non-condensing) |
| Drive method | Constant voltage |
| Light control mode | 0-255 level PWM / serial port |
| Communication interface | PCIe X1 |
| Power interface | Large 4-pin D-type connector (PC host power) |
| Input voltage | DC12V 5A |
| Channels | 2 |
| Output voltage | DC 24V |
| Max output current | 2A (single channel max current 1A) |
| Total power | 48W |
| Output port | SMP-03V-BC (1: output+ 2: NC 3: output-) |
| External trigger voltage | DC5V~24V (current about 5.6mA) |
| Trigger delay | <10us |
| Cooling method | Natural cooling |
| Trigger port | 1+/1-, 2+/2- (CH1/CH2 external trigger positive / negative); a DC5-24V signal on a channel gives a valid trigger; constant-off mode: light on while triggered, constant-on mode: light off while triggered |
| Drawing dimensions (mm) | Bracket 120 x 21.5; card 153.2 / 140.5 / 138.4 x 47.4 (+12.6); thickness 11.8-14 |
| Total output (W) | 48 |
| Shipping weight | 0.27 kg |
