360° inspection lenses

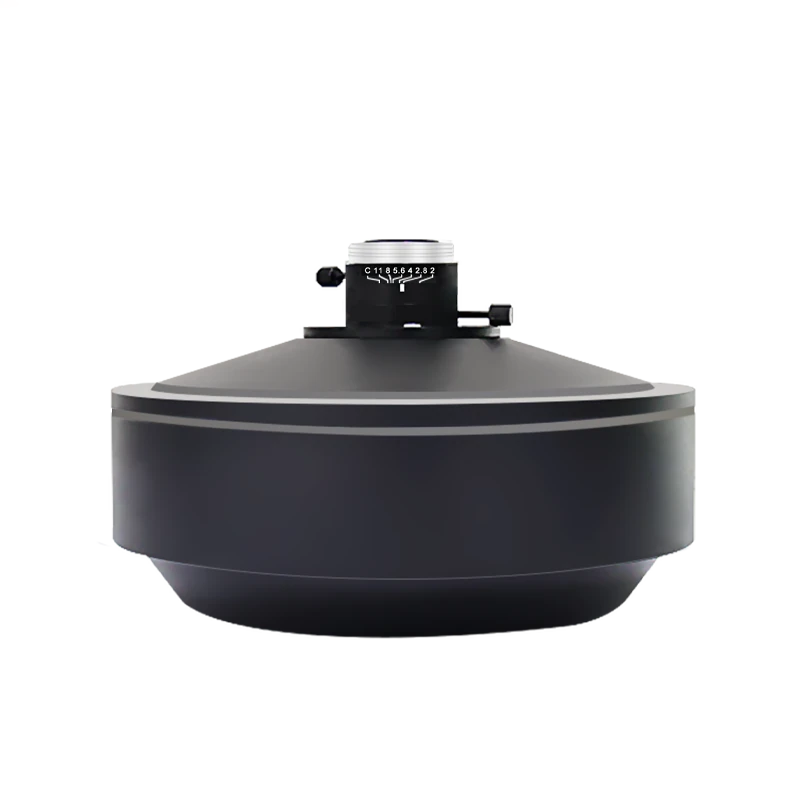

360 degree industrial lens (LS-OR / LS-IR), 1/1.8", C-mount (LS-OR3601802A)
Model LS-OR3601802A
360 degree Industrial lens is divided into internal and external observations. It detects the internal view or appearance of the measured object in 360 degrees, and transmits HD images in real time.
Features
- Sensor Size: 1/1.8".
- Working Distance: 9-45.4mm.
- F/NO: F8-16, C-Mount.
- High contrast and excellent imaging effects.
- Suitable suitable for appearance detection, inner wall detection, cylinder and complex structure detection, etc.
Specifications
| Model | LS-OR3601802A |
|---|---|
| Sensor Size | 1/1.8" |
| F/NO. | F8.0-16 |
| Image Size(mm) | dia. 5.32 |
| Working distance(mm) | 9-45.4 |
| Target Dia(mm) | 7.5-30 |
| Inspection Height(mm) | 5.3-25 |
| Mount | C |
| Type | 360 Degree Industrial Lens-Outer Wall Detection |
| Image Size | dia. 5.32mm |
| WD | 9-45.4mm |
| Target Dia | 7.5-30mm |
| Inspection Height | 5.3-25mm |
| Mount (product page) | C-Mount |
| Main Material | Aluminum Alloy + optical Glass |
| Color | Black |
| Weight (g) | — |
| Warranty | 2 years |
| Custom Design | Supported |
| Sensor format | 1/1.8" |
| Aperture | F8.0-16 |
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guideOther sizes in the 360 degree industrial lens (LS-OR / LS-IR) series
| Model | Size | Price | Availability | |
|---|---|---|---|---|
| LS-OR3602303A | 2/3", C-mount | $619.00 | 3 in stock | View |
| LS-OR3601204A | 1/2", C-mount | $619.00 | 4 in stock | View |
| LS-OR3601305A | 1/3", C-mount | $619.00 | 4 in stock | View |
| LS-IR3602306A | 2/3", C-mount | $619.00 | 2 in stock | View |
| LS-IR3601306A | 1/3", C-mount | $619.00 | 5 in stock | View |
| LS-OR3601207A | 1/2", C-mount | $619.00 | 2 in stock | View |
| LS-OR3602308A | 2/3", C-mount | $619.00 | 2 in stock | View |
| LS-OIR3601809A | 2/3", C-mount | $619.00 | 4 in stock | View |
| LS-OR3601811A | 1/2", C-mount | $619.00 | 4 in stock | View |
