Dome lights

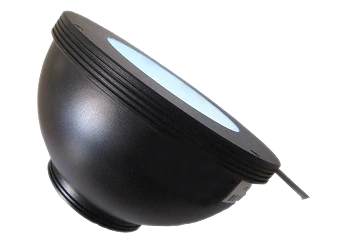

LED dome light (NTD) (LS-NTD-C116X-S)
Model LS-NTD-C116X-S
Uniform, shadow-free lighting for shiny and curved surfaces: light comes out from the bottom and is reflected 360 degrees inside the sphere so the whole image is uniform.
Features
- Providing uniform and shadows lighting, ideal choice for the shinny and curved surface.
- With sphere structure, lighting comes out from bottom and 360 degree reflective, the whole image result is uniform.
Specifications
| Model | LS-NTD-C116X-S |
|---|---|
| Size (mm) | dia. 116 x 59.4 |
| Current (max) (Blue) | 0.4A |
| Power (max) (Blue) | 9.7W |
| Color temperature / wavelength (Blue) | 470nm Typ. |
| Current (max) (Red) | 0.29A |
| Power (max) (Red) | 7W |
| Color temperature / wavelength (Red) | 625nm Typ. |
| Current (max) (White) | 0.3A |
| Power (max) (White) | 7.2W |
| Color temperature / wavelength (White) | 6500K Typ. |
| Shipping weight | 0.50 kg |
Applications
- Inspection of curved and uneven surfaces
- Highly reflective metal and glass surfaces
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guideOther sizes in the LED dome light (NTD) series
| Model | Size | Power | Colours | Price | Availability | |
|---|---|---|---|---|---|---|
| LS-NTD-C70X-S | 2.6 W | $149.00 | 10 in stock | View | ||
| LS-NTD-C175X-S | 12 W | $449.00 | 11 in stock | View | ||
| LS-NTD-C198X-S | 15 W | $529.00 | 7 in stock | View | ||
| LS-NTD-C260X-S | 17 W | $809.00 | 6 in stock | View | ||
| LS-NTD-C325X-S | 36 W | $1,149.00 | 11 in stock | View |
