Light controllers

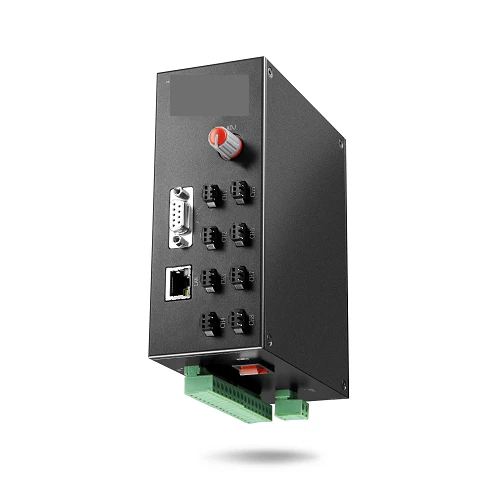

8 channel digital strobe light controller (NTC-ST1024D100), 8 ch (LS-NTC-ST1024D100-8)
Model LS-NTC-ST1024D100-8
Features
- Each channel individually control light intensity/external trigger mode/channel switch
- Constant current output, more accurate control and more stable light intensity
Specifications
| Model | LS-NTC-ST1024D100-8 |
|---|---|
| Power supply | DC24V |
| Each channel current range | 0~1000mA |
| High brightness/strobe mode | 1.5A Maximum working time 5ms Set up working time by communication port(100-5000us) |
| Channels | 8 |
| Intensity levels | 0~255 |
| External trigger mode | ContinuousSwitchedStrobe |
| External trigger voltage | 5~24V |
| Light short-circuit indicate | E01-08 |
| Communication port | RS-232/LAN |
| Baud rate and data format | 9600/data bit, 8/stop bit, 1/no parity |
| Operating Environment | Temperature 0~40°C / Humidity 25%~85% |
| Installation mode | DIN |
| Dimensions(mm) | 60*126*150 |
| Weight | 808g |
| Control | Digital, 256 levels (0~255), RS-232/LAN |
