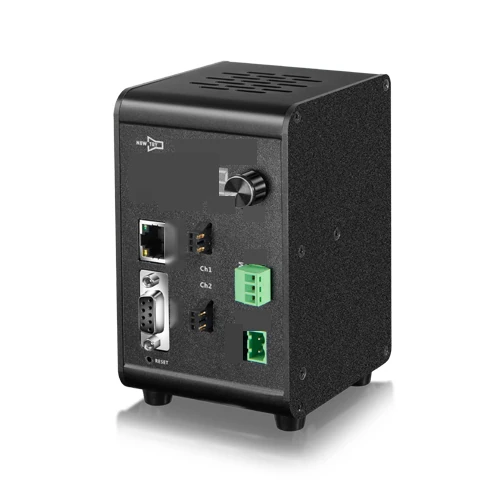

Digital light controller, 2 / 4 / 8 channel (NTC-E1024DF-M), 2 ch, 48 W (LS-NTC-E1024DF-M2)
Model LS-NTC-E1024DF-M2
Features
- Stepping 0.1ms
- Light intensity level 0 255
- Pulse width 0.1ms 999.9ms
- Respond time≤5μs
- Respond time
Specifications
| Model | LS-NTC-E1024DF-M2 |
|---|---|
| Power input | DC24V30V 1A2.5A |
| Power supply terminal | 5.08mm2EDGK-2P Butt plugs support 0.3mm²2.5mm² wire diameter |
| Max output | 24V1A each channel) 48W 2 channels in total) |
| Output terminal | 2.54mm SM-3P Butt plug with empty pin in the middle |
| Drive mode | Constant Current Driving |
| Intensity control | 02550 closed255 max |
| Reverse power input protection | Yes |
| Output short circuit protection | Yes |
| Operating mode | Continuous and strobe (trigger voltage 5V ~ 24V) |
| Trigger delay response | ≤5us |
| Trigger delay pulse width | 0.1mS999.9mS0.1ms step length |
| Trigger response frequency | ≤20KHz |
| Trigger access terminal | 3.81mm15EDGK-5P Butt plugs support 0.3mm²1.5mm² wire diameter |
| Communication mode | RS-2329600, 8N1,default address 25310/100M Ethernet default IP192.168.1.253TCP port number502 |
| Use environment (indoor) | Temperature; 0℃40℃ humidity 25%~85%RHNo condensation) |
| Preservation environment (indoor) | Temperature -20℃60℃ humidity 25%~85%RHNo condensation) |
| Cooling method | Natural cooling |
| Installation method | Support DIN standard rail 35mm width |
| Dimension L*W*Hmm | 103x75x127 |
| Weight(g) | 500g |
| Accessories | DC5.5X2.1mmfemale wire 35cm wire diameter 0.5mm²X1 |
| Note | A patch cord is required when using spot light. |
| Channels | 2 |
| Total output (W) | 48 |
| Voltage | DC24V30V 1A2.5A |
