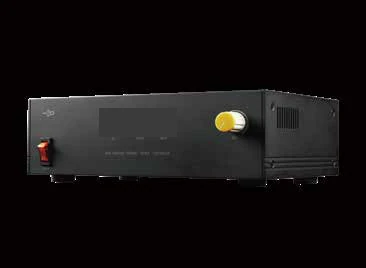

16 channel digital LED light controller, 16 ch, 200 W (LS-NTC-E1024D-16)
Model LS-NTC-E1024D-16
A constant current type of 16 channels digital light controller for high precision and intensity control of machine vision LED light.
Features
- Each channel functions individually with external trigger input
- Maximum output power 200W for all 16 channels
- Maximum output current 1000mA, output voltage 24V of each channel
- 256 levels of intensity adjustment
- External trigger mode has three types: Continuous, Switched, Strobe with trigger delay time <20us
- Strobe mode output pulse width is adjustable from 100us-300ms, in steps of 100us
- RS232 communication port with PC for remote control
- Professional heat dissipation design
Specifications
| Model | LS-NTC-E1024D-16 |
|---|---|
| Power supply | AC100V-240V |
| Max. output current of each channel | 1A |
| Max. output voltage of each channel | 24V |
| Channels | 16 |
| Intensity levels | 0~255 |
| External trigger mode | Continuous, Switched, Strobe |
| External trigger voltage | 5~24V |
| Trigger delay time | < 20us |
| Internal output pulse-width | 100us-300ms, in steps of 100us |
| Communication port | RS-232 |
| Baud rate and data format | 9600/data bit, 8/stop bit, 1/no parity |
| Operating environment | Temperature 0~40°C / Humidity 25%~85% |
| Dimensions (mm) | 266 x 174 x 95 |
| Weight | 2.85Kg |
| Total output (W) | 200 |
| Control | Digital, 256 levels (0~255), RS-232 |
Applications
- Machine vision LED light control
