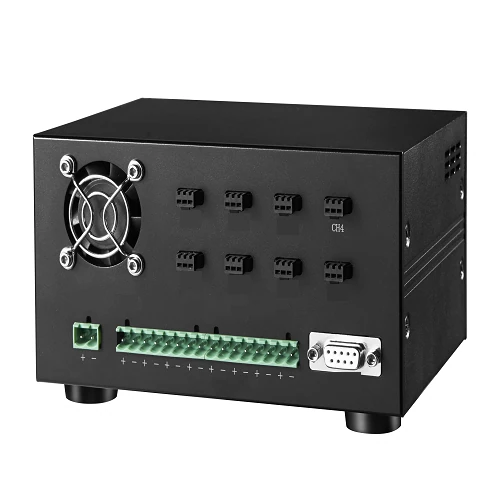

8 channel digital LED light controller (NTC-D1024D), 8 ch (LS-NTC-D1024D-8)
Model LS-NTC-D1024D-8
Features
- Each channel functions individually with external trigger input
- Maximum output power 200W for all 8 channels
- Maximum output current 1000mA,output voltage 24V of each channel
Specifications
| Model | LS-NTC-D1024D-8 |
|---|---|
| Power supply | DC24V |
| Max.output current of each channel | 1A |
| Max.output voltage of each channel | 24v |
| Channels | 8 |
| Intensity levels | 0~255 |
| External trigger mode | Continuous,Switched,Strobe |
| External trigger voltage | 5~24V |
| Trigger delay time | 200us~100ms |
| Internal output pulse-width | 0.1ms-300ms |
| Communication port | RS-232 |
| Baud rate and data format | 9600/data bit, 8/stop bit, 1/no parity |
| Operating Environment | Temperature 0~40°C / Humidity 25%~85% |
| Dimensions(mm) | 165*131*95 |
| Weight | 1.17Kg |
| Control | Digital, 256 levels (0~255), RS-232 |
