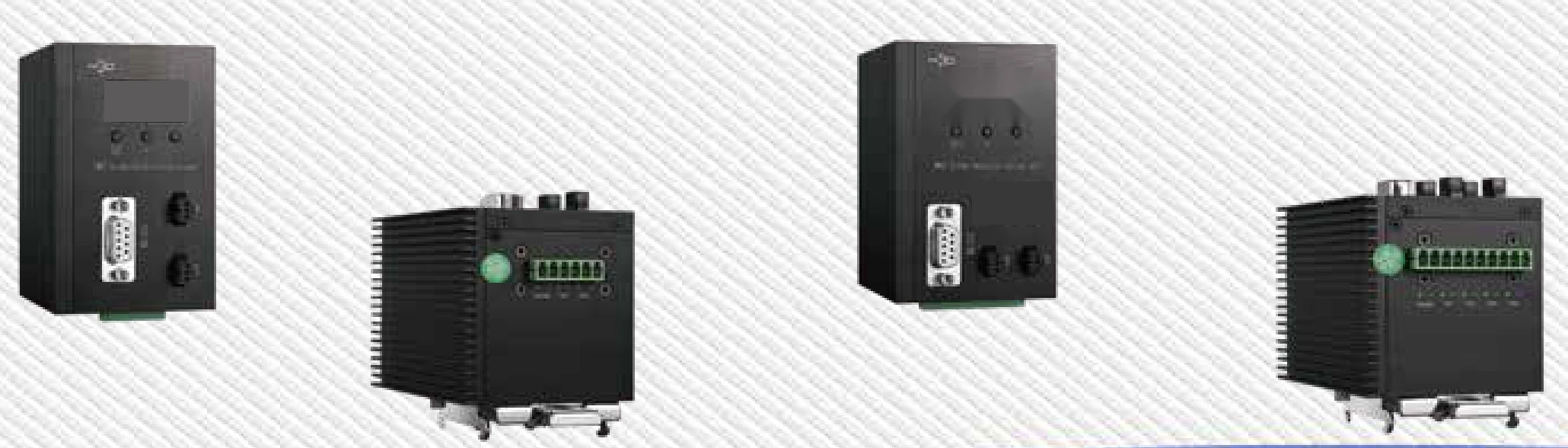

2 / 4 channel digital LED light controller, 4 ch (LS-NTC-C1024DF-4)
Model LS-NTC-C1024DF-4
A constant current type of 2 or 4 channels digital light controller for high precision and intensity control of machine vision LED light.
Features
- Each channel functions individually with external trigger input
- Constant current output. Maximum output current 1000mA, output voltage 24V of each channel
- 256 levels of intensity adjustment
- External trigger mode has three types: Continuous, Switched, Strobe with trigger delay time <50us
- Strobe mode output pulse width is adjustable from 1ms-999ms, in steps of 1ms; strobe mode improves the efficiency of the light source and extends the working life of the LED
- RS232 communication port with PC for remote control
- Professional heat dissipation design to ensure stability in full power operation and extend working time of the controller
Specifications
| Model | LS-NTC-C1024DF-4 |
|---|---|
| Power supply | DC24V |
| Max. output current of each channel | 1A |
| Max. output voltage of each channel | 24V |
| Channels | 4 |
| Intensity levels | 0~255 |
| External trigger mode | Continuous, Switched, Strobe |
| External trigger voltage | 5~24V |
| Trigger delay time | < 50us |
| Internal output pulse-width | 1ms-999ms, in steps of 1ms |
| Communication port | RS-232 |
| Baud rate and data format | 9600/data bit, 8/stop bit, 1/no parity |
| Operating environment | Temperature 0~40°C / Humidity 25%~85% |
| Dimensions (mm) | 98 x 60 x 68 |
| Installation mode | DIN |
| Weight | 0.45kg |
| Control | Digital, 256 levels (0~255), RS-232 |
Applications
- Machine vision LED light control
Complete the station
Drive the light from a light controller and pair it with a lens for your field of view and working distance.
Light controllers LensesSelection guideOther sizes in the 2 / 4 channel digital LED light controller series
| Model | Size | Price | Availability | |
|---|---|---|---|---|
| LS-NTC-C1024DF-2 | 2 ch | $149.00 | 3 in stock | View |
