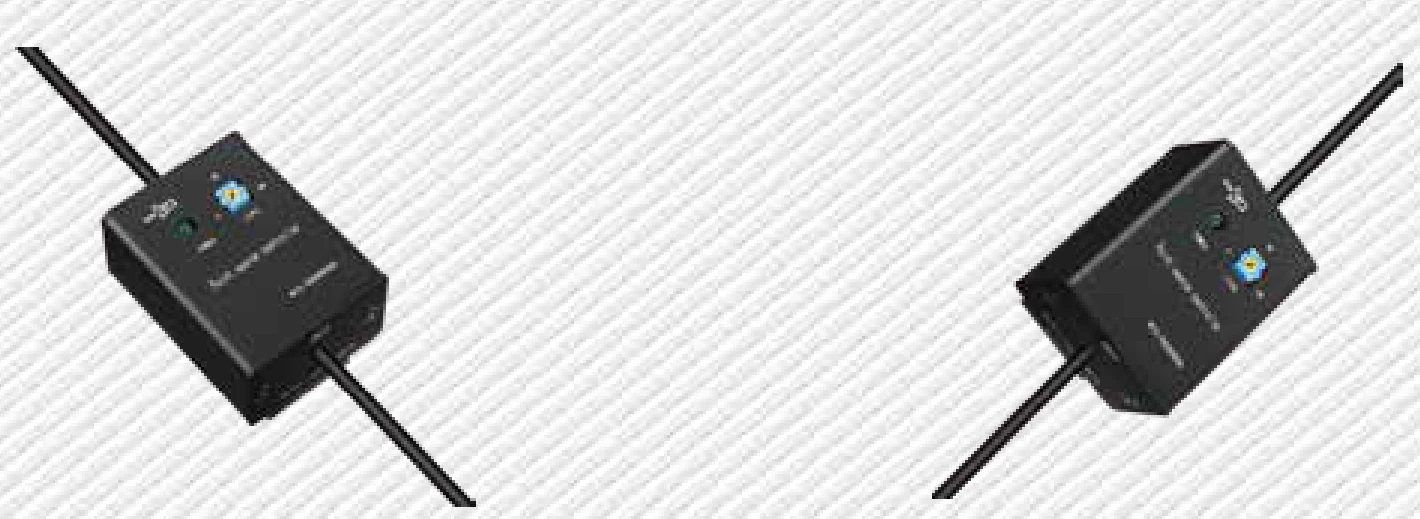

Single channel analog LED light controller, 1 ch (LS-NTC-C000505A)
Model LS-NTC-C000505A
Constant current single channel analog controller for high precision and intensity control of machine vision LED lights; external trigger pulse sync mode and ON mode; precision potentiometer allows high precision intensity adjustment.
Features
- Constant current single channel analog control
- External trigger pulse sync mode and ON mode
- Precision potentiometer allows high precision intensity adjustment
Specifications
| Model | LS-NTC-C000505A |
|---|---|
| Power supply | DC24V |
| Max. output current of each channel | 0~5mA/5V |
| Max. output voltage of each channel | 24V |
| Channels | 1 |
| Intensity adjustment | Potentiometer, 0~100 [0 is off, 100 is max] |
| External trigger mode | Sync with external trigger pulse |
| External trigger voltage | 5~24V |
| Operating environment | Temperature 0~40°C / Humidity 25%~85% |
| Dimensions (mm) | 53 x 40 x 33 |
| Installation mode | DIN |
| Weight | 200g |
| Control | Analog potentiometer (0~100) |
Applications
- Machine vision LED light control
