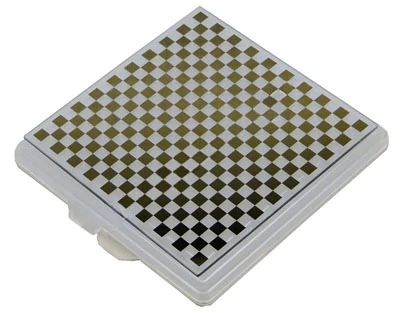

Tessellated calibration targets (NRT) (LS-NRT-030-0.2-G/C)
Model LS-NRT-030-0.2-G/C
The outline standard dimensions of Tessellated Calibration Targets is 38, 50, 76, 100, 150, 200mm. Its precision can reach +/-0.001mm after testing by the China Institute of Metrology.
Features
- The outline standard dimensions of Tessellated Calibration Targets is 38, 50, 76, 100, 150, 200mm. Its precision can reach +/-0.001mm after testing by the China Institute of Metrology.
- It can be compatible with Zhang Zhengyou basic calibration algorithm and OpenCV calibration algorithm.Suitable used for universities and research institutions.
- Any pattern,any size,quickly and low cost
- Any pattern, any size, quickly and low cost (customization)
Specifications
| Model | LS-NRT-030-0.2-G/C |
|---|---|
| Substrate | Soda Lime Glass |
| Thickness | 2.3mm |
| Overall accuracy | ±1um |
| Process | Direct Laser Writing |
| Dimension(mm) | 30*30 |
| Effective Area(mm) | 20.6 |
| Grid(mm) | 0.2 |
| Grid Array | 103*103 |
| Shipping weight | 0.21 kg |
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guideOther sizes in the Tessellated calibration targets (NRT) series
| Model | Size | Price | Availability | |
|---|---|---|---|---|
| LS-NRT-025-0.1-G/C | $39.00 | 2 in stock | View | |
| LS-NRT-038-0.25-G/C | $39.00 | 2 in stock | View | |
| LS-NRT-050-0.5-G/C | $39.00 | 4 in stock | View | |
| LS-NRT-062-1.0-G/C | $39.00 | 2 in stock | View | |
| LS-NRT-065-1.5-G/C | $39.00 | 3 in stock | View | |
| LS-NRT-100-2.0-G/C | $39.00 | 5 in stock | View | |
| LS-NRT-100-2.5-G/C | $39.00 | 5 in stock | View | |
| LS-NRT-127-3.0-G/C | $39.00 | 2 in stock | View | |
| LS-NRT-127-4.0-G/C | $39.00 | 5 in stock | View |
