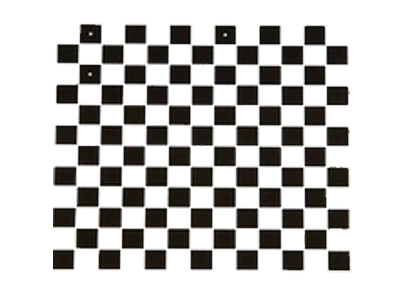

OpenCV calibration targets (NRO) (LS-NRO-038-2.0-G/C)
Model LS-NRO-038-2.0-G/C
Fully follow method files from OpenCV.
Features
- Fully follow method files from OpenCV.
- Any pattern,any size,quickly and low cost.
- Any pattern, any size, quickly and low cost (customization)
Specifications
| Model | LS-NRO-038-2.0-G/C |
|---|---|
| Substrate | Soda Lime Glass |
| Thickness | 2.3mm |
| Overall accuracy | ±1um |
| Process | Direct Laser Writing |
| Dimension | 38*38 |
| Effective Area(mm) | 26*24 |
| Grid(mm) | 2.0 |
| Grid Array | 12*13 |
| Shipping weight | 0.21 kg |
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guideOther sizes in the OpenCV calibration targets (NRO) series
| Model | Size | Price | Availability | |
|---|---|---|---|---|
| LS-NRO-050-3.0-G/C | $39.00 | 3 in stock | View | |
| LS-NRO-076-4.0-G/C | $39.00 | 5 in stock | View | |
| LS-NRO-100-6.0-G/C | $39.00 | 4 in stock | View | |
| LS-NRO-127-8.0-G/C | $39.00 | 5 in stock | View |
