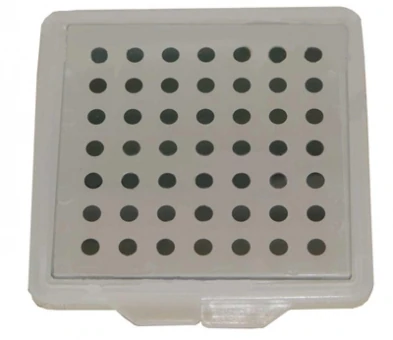

Dot calibration targets (NRD) (LS-NRD-038-0.2-G/C)
Model LS-NRD-038-0.2-G/C
The outline standard dimensions of Dot Calibration Targets is 38, 50, 76, 100, 150, 200mm.
Features
- The outline standard dimensions of Dot Calibration Targets is 38, 50, 76, 100, 150, 200mm.
- Its precision can reach +/-0.001mm after testing by the China Institute of Metrology.
- Any pattern,any size,quickly and low cost.
- Any pattern, any size, quickly and low cost (customization)
Specifications
| Model | LS-NRD-038-0.2-G/C |
|---|---|
| Substrate | Soda Lime Glass |
| Thickness | 2.3mm |
| Overall accuracy | ±1um |
| Process | Direct Laser Writing |
| Dimension(mm) | 38*38 |
| Effecitve Area(mm) | 31.4 |
| Array | 79*79 |
| Dot Dia.(mm) | 0.2 |
| Dot Spacing(mm) | 0.4 |
| Shipping weight | 0.21 kg |
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guideOther sizes in the Dot calibration targets (NRD) series
| Model | Size | Price | Availability | |
|---|---|---|---|---|
| LS-NRD-038-0.1-G/C | $39.00 | 3 in stock | View | |
| LS-NRD-050-0.25-G/C | $39.00 | 3 in stock | View | |
| LS-NRD-076-0.5-G/C | $39.00 | 4 in stock | View | |
| LS-NRD-100-0.6-G/C | $39.00 | 3 in stock | View | |
| LS-NRD-100-1.0-G/C | $39.00 | 2 in stock | View |
