Telecentric lenses

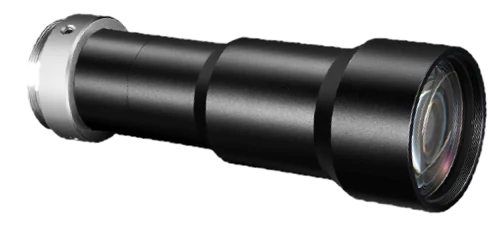

Object-Side Telecentric Lens, 1.5x, 108 mm WD, 2/3" (LS-MY-15-108)
Model LS-MY-15-108
Object-Side Telecentric Lens, 1.5x, 108 mm WD, 2/3". Excellent image quality with an optimized fixed-magnification design Supports cameras up to 2/3"
Features
- Excellent image quality with an optimized fixed-magnification design
- Supports cameras up to 2/3"
Specifications
| Model | LS-MY-15-108 |
|---|---|
| Magnification | 1.5 |
| Working distance | 108 mm |
| F-number | F7.3 |
| Image size | Φ11 mm |
| Depth of field | 0.3 mm |
| Distortion | ≤0.04% |
| Object-side resolution | 3.9 μm |
| Object-side telecentricity | ≤0.02° |
| Connector type | C-Mount |
| Coaxial light | Not supported |
| Dimension | 122.4 mm × Φ32 mm |
| Temperature | -10 ~ 50 °C |
| Certification | RoHS2.0 |
| Shipping weight (estimated) | 0.66 kg |
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guideOther sizes in the M Series Object-Side Telecentric lenses series
| Model | Size | Price | Availability | |
|---|---|---|---|---|
| LS-MY-4-108C | 4x, 108 mm WD, 2/3" | $599.00 | 4 in stock | View |
| LS-MY-4-63 | 4x, 63 mm WD, 2/3" | $599.00 | 5 in stock | View |
| LS-MY-4-63C | 4x, 63 mm WD, 2/3" | $599.00 | 4 in stock | View |
| LS-MY-4-108 | 4x, 108 mm WD, 2/3" | $599.00 | 4 in stock | View |
| LS-MY-2-110C-MP | 2x, 110 mm WD, 2/3" | $609.00 | 5 in stock | View |
| LS-MY-2-110-MP | 2x, 110 mm WD, 2/3" | $609.00 | 2 in stock | View |
| LS-MY-2-110-V4-G | 2x, 110 mm WD, 2/3" | $609.00 | 5 in stock | View |
| LS-MY-2-110-V4 | 2x, 110 mm WD, 2/3" | $609.00 | 2 in stock | View |
| LS-MY-3-108 | 3x, 108 mm WD, 2/3" | $619.00 | 2 in stock | View |
| LS-MY-3-63 | 3x, 63 mm WD, 2/3" | $619.00 | 3 in stock | View |
| LS-MY-2-108C | 2x, 108 mm WD, 2/3" | $649.00 | 3 in stock | View |
| LS-MY-2-108 | 2x, 108 mm WD, 2/3" | $649.00 | 5 in stock | View |
| LS-MY-15-108C | 1.5x, 108 mm WD, 2/3" | $679.00 | 5 in stock | View |
| LS-MY-15-200 | 1.5x, 200 mm WD, 2/3" | $679.00 | 2 in stock | View |
| LS-MY-15-63C | 1.5x, 63 mm WD, 2/3" | $679.00 | 3 in stock | View |
| LS-MY-1-180 | 1x, 180 mm WD, 2/3" | $689.00 | 4 in stock | View |
| LS-MY-1-150 | 1x, 150 mm WD, 2/3" | $689.00 | 5 in stock | View |
| LS-MY-1-410C | 1x, 410 mm WD, 2/3" | $689.00 | 2 in stock | View |
| LS-MY-1-370 | 1x, 370 mm WD, 2/3" | $689.00 | 4 in stock | View |
| LS-MY-1-510 | 1x, 510 mm WD, 2/3" | $689.00 | 3 in stock | View |
| LS-MY-1-300-V2 | 1x, 300 mm WD, 2/3" | $699.00 | 4 in stock | View |
| LS-MY-2-63 | 2x, 63 mm WD, 2/3" | $729.00 | 4 in stock | View |
| LS-MY-2-63C | 2x, 63 mm WD, 2/3" | $729.00 | 2 in stock | View |
| LS-MY-08-130C-MP | 0.8x, 130 mm WD, 2/3" | $739.00 | 2 in stock | View |
See all 99 models in the M Series Object-Side Telecentric lenses series
