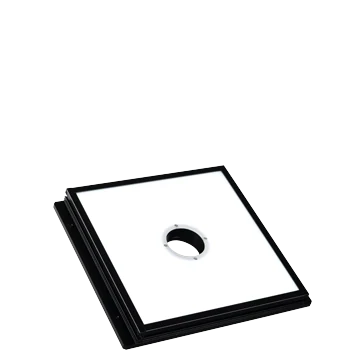

Flat Backlight with Center Hole, 264 x 194 mm, White (LS-MX-250-180-W)
Model LS-MX-250-180-W
Flat Backlight with Center Hole, 264 x 194 mm, White. Wide-angle SMD LEDs in a high-density layout for good uniformity Available in custom sizes and wavelengths
Features
- Wide-angle SMD LEDs in a high-density layout for good uniformity
- Available in custom sizes and wavelengths
- Multiple mounting options
Specifications
| Model | LS-MX-250-180-W |
|---|---|
| Color | White |
| Connector type | SMR-03V-B |
| Power | 41.76 W |
| Cable length | 500 mm |
| Dimension | 264 mm × 194 mm × 21 mm |
| Bore dimension | Ø 65 mm |
| Emitting area dimension | 250 mm × 180 mm |
| Temperature | Working temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) |
| Humidity | 20% to 85% RH (non-condensing) |
| Diffuse plate included | Included |
| Shipping weight (estimated) | 0.66 kg |
| Supply voltage (derived) | 24 V DC, derived: all 115 backlights of this range that state a voltage are rated 24 V |
