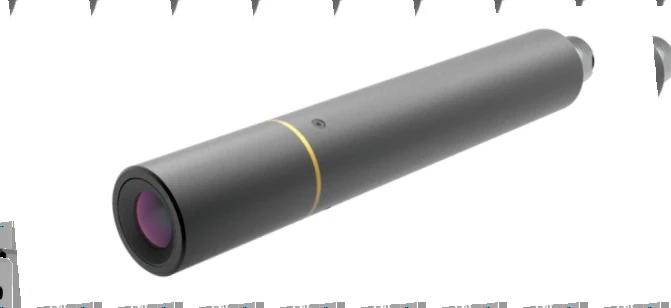

Pen mini camera (LS-MV-T3Y232GC/M)
Model LS-MV-T3Y232GC/M
Pen-shaped mini industrial camera with integrated M12 lens, diameter only 20 mm, and Gigabit network interface.
Features
- Integrated M12 lens, small size, diameter only 20mm
- Interchangeable lens, unlimited field of vision
- Gigabit network interface, 100m long-distance stable transmission
- Built-in hardware accelerates image processing and reduces CPU utilization at the host end
- Compatible with the vision standard, drive free, directly supports Halcon, VisionPro and other software
Specifications
| Model | LS-MV-T3Y232GC/M |
|---|---|
| Acquisition mode | Continuous/soft trigger/hard trigger |
| Frame buffer | 128MB |
| User-defined data area | 2KB |
| GPIO | 1 way flash output |
| Lens mount | M12 x 0.5 |
| Vision standard protocol | GigE Vision V1.2, GenICam |
| Data interface | RJ45 Gigabit Ethernet interface, backward compatible with 100M network |
| Working temperature @ humidity | 0~50℃ @ 20%~80% (no condensation) |
| Storage temperature @ humidity | 30~60℃ @ 20%~95% (no condensation) |
| Operating system | WINXP, WIN7/8/10 32&64 bit systems, Linux and ARM Linux drivers, Android platform drivers, MAC OS systems |
| Driver | Directshow component, Halcon dedicated component, Labview dedicated driver, OCX component, TWAIN component |
| Programming language pack | C/C++/C#/VB6/VB.NET/Delphi/BCB/Python/Java |
| Other functions | Support any size ROI custom resolution, contrast and gamma adjustment, saturation adjustment, white balance correction, black level correction, custom dead point coordinate correction, ISP image processing acceleration, 3D noise reduction, custom LUT table, frame rate adjustment, custom camera name, etc. |
| Resolution @ frame rate | 1920 x 1200@52FPS |
| Pixel size | 3.0μm x 3.0μm |
| Pixel bit depth | 8bit |
| Field of view (standard product) | 15.8 x 7mm |
| Object distance (standard product) | 100mm |
| Maximum gain (multiple) | 16 |
| Exposure time range (ms) | 0.014~917.5 |
| Sensitivity | Color: 3.1V/lux x s; Mono: 3.6V/lux x s |
| Power supply | 12V |
| Power | <2.66W |
| Dimensions | 20 x 122mm (excluding back-end interface size) |
| Weight | <100g |
| Mono / colour | Colour/Mono |
| Voltage | 12 V DC |
