USB3.0 area scan camera, SU series, 5.0 MP, USB3, Color/Mono (LS-MV-SU507GC/M)
Model LS-MV-SU507GC/M
USB3.0 area scan cameras with 5Gbps transmission bandwidth and high-speed sensors: a 0.3MP camera reaches 800 fps with a minimum transmission time of 1.2 ms and a 20MP camera reaches 18fps; one computer can run multiple cameras at high frame rate. Low CPU utilization through DMA transmission. Widely used in electronic 3C, semiconductor automation, logistics code scanning, intelligent transportation, biomedicine, packaging and printing.
Features
- Programmable IO, supports external trigger and flash synchronous photography
- Supports 16bit gray and 48bit color lossless format output
- 0.3MP to 20MP CMOS, multiple global shutter cameras available
- One computer can connect multiple cameras and work stably for a long time without dropping frames
- Fully compatible with the GigE camera SDK, seamless replacement
- Supports PC Linux and ARM Linux, can be integrated into embedded devices
- Supports vision protocols; compatible with Halcon, VisionPro, LabVIEW and other vision software
Specifications
| Model | LS-MV-SU507GC/M |
|---|---|
| Vision standard | USB3Vision 1.0, GenICam |
| Data interface | USB3.0 |
| Operating system | WIINXP, WIN7/8/10 32@64-bit system, Linux and ARM Linux driver (customizable), Android platform driver (customizable) |
| Driver | Directshow component Halcon special component Labview special driver OCX component TWAIN component |
| Programming language pack | C/C++/C#/VB6/VB.NET/Delphi/BCB/Python/Java |
| Working temperature @humidity | 0~50℃ @ 20%~80% (no condensation) |
| Storage temperature @humidity | 30~60℃ @ 20%~95% (no condensation) |
| Other functions | Support any size ROI custom resolution, contrast and gamma adjustment, saturation adjustment, white balance correction, black level correction, custom dead point coordinate correction, ISP image processing acceleration, 3D noise reduction, custom LUT table, frame rate adjustment, custom camera name, etc. |
| Tailpiece suffix options (AU/FU/CU/2SU) | T1V-C: line sequence definition 1, 12V power supply, power supply shrapnel type aircraft head, C-mount, Recommend; -T: line sequence definition 2, aircraft head, CS-mount, planned shutdown; -T-C: line sequence definition 2, aircraft head, C-mount, planned shutdown; -TV-C: line sequence definition 3, 12V power supply, aircraft head, C-mount, planned shutdown |
| Connector pinout -T1V-C (Port A) | 1 Red PWR+ (camera power input positive); 2 White GPI1+/TRIG_IN+ (default trigger input); 3 Brown GPI2/GPO2 (non-isolated bidirectional IO); 4 Green GPO1+/STRB_OUT+ (default flash output); 5 Yellow GPO1-/STRB-OUT-/TRIG_IN- (GPIO common negative terminal); 6 Black PWRGND |
| Connector pinout -T, -T-C | 1 Green GPO1+/STRB_OUT+ (default flash output); 2 Yellow GPO1-/STRB_OUT- (default flash output); 3 White GPI1+/TRIG_IN+ (default trigger input); 4 Brown GPI1-/TRIG_IN- (default trigger input); 5 Red GPO2+; 6 Black GPO2 |
| Connector pinout -TV-C (Port A) | 1 Green GPO1+/STRB_OUT+; 2 Yellow GPO1-/STRB_OUT; 3 White GPI1+/TRIG_IN+; 4 Brown GPI1-/TRIG_IN-; 5 Red PWR+; 6 Black PWRGND |
| Pixels | 5MP |
| Sensor type | CMOS |
| Shutter method | Global |
| Maximum resolution | 2448x2048 |
| Pixel size | 3.4μm |
| Frame rate (FPS) | 60 |
| Target size | 2/3" |
| Minimum exposure | 0.003ms |
| Sensor model | GMAX3405 |
| Colour | Color/Mono |
| Resolution@frame rate | 2448x2048@60FPS |
| Pixel size (detail) | 3.4μm×3.4μm |
| Pixel bit depth | 10bit |
| Sensitivity | 88 dB (angular dependence) |
| Acquisition mode | Continuous/soft trigger/hard trigger |
| Maximum gain (multiple) | 8 |
| Exposure time range (ms) | 0.0084~553.4 |
| Frame buffer | 128M Bytes |
| User-defined data area | 2K Bytes |
| Video output format | Color: Bayer 8bit; Mono: Mono 8bit |
| GPIO | 1 optocoupler isolated input, 1 optocoupler isolated output, 1 non-isolated input and output |
| Lens mount | C-Mount |
| Power supply | USB 5V / Avionic head power supply 12V |
| Power | <3W |

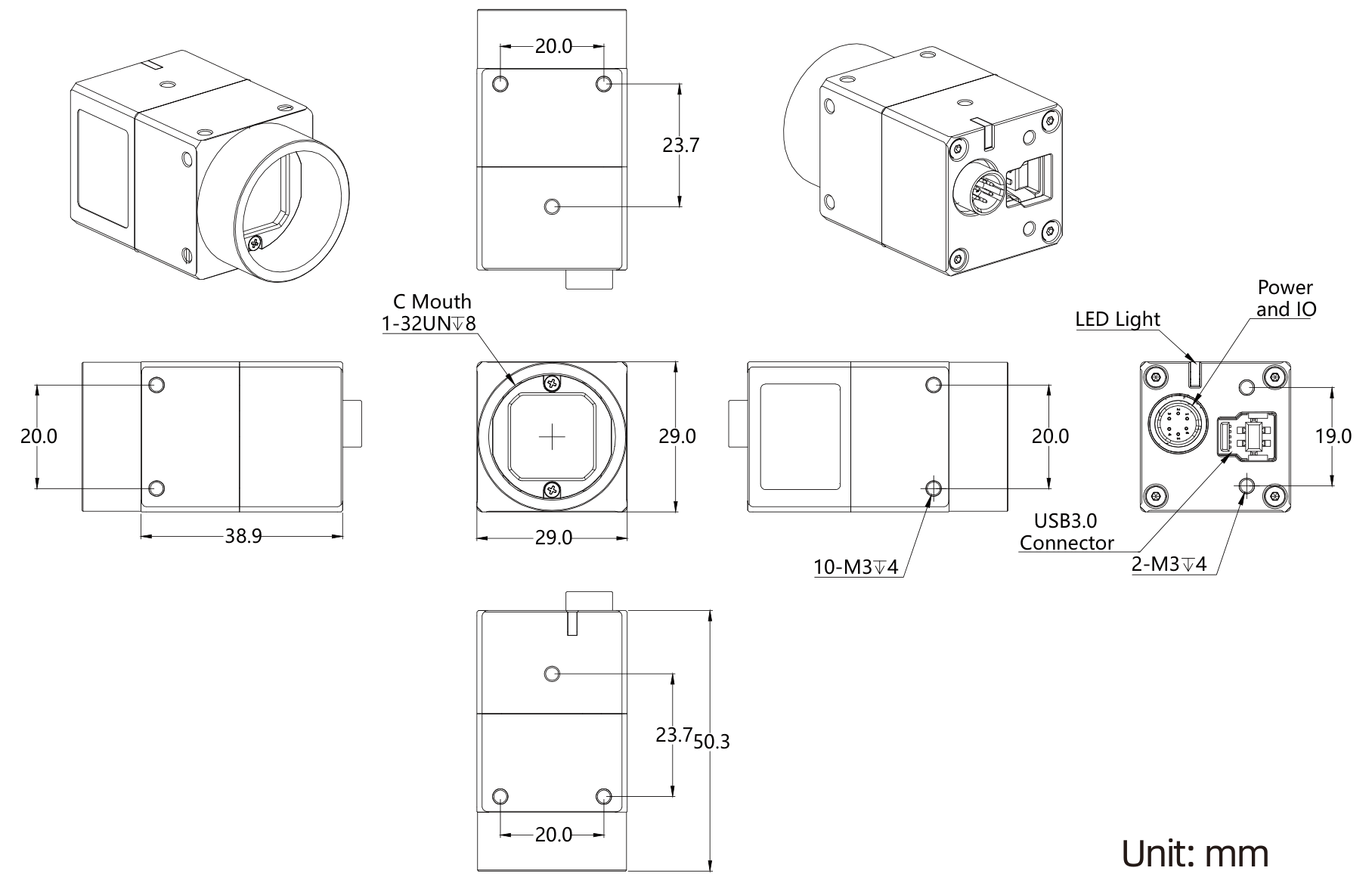

| Dimensions | 29X29X32.7mm (without lens mount and rear shell interface) |
| Weight | <550g |
| Sensor format | 2/3" |
| Mono / colour | Color/Mono |
| Voltage | USB 5V / Avionic head power supply 12V |
Applications
- Electronic 3C
- Semiconductor automation
- Logistics code scanning
- Intelligent transportation
- Biomedicine
- Packaging and printing
Complete the station
Drive the light from a light controller and pair it with a lens for your field of view and working distance.
