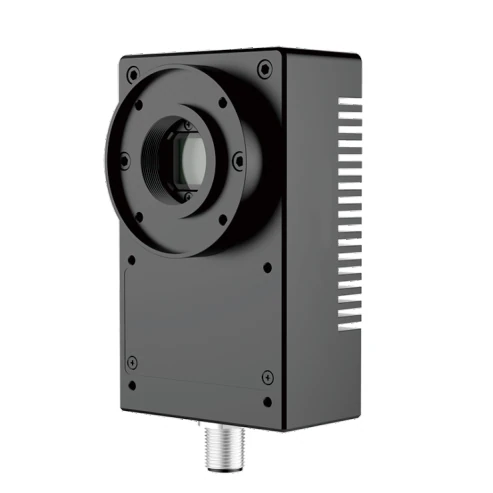

SC / SC(E) smart camera (X86 platform), 5.0 MP, USB3, Color/Mono (LS-MV-SCE501GC/M)
Model LS-MV-SCE501GC/M
SC/SC(E) is a smart camera series based on an X86 platform (vision software not included; SDK provided for image capture), with 0.3 to 20 megapixels. Standard Windows and Linux operating systems are built in, applications can be copied to and run inside the camera, and mouse, keyboard and monitor can be connected with no external computer, suiting single-workstation inspection such as code scanning, measurement, product recognition and positioning on the assembly line.
Features
- SC: CPU Intel Atom Z8350 (1.44-1.92GHZ), 2G/32G or 4G/64G (memory/disk)
- SC(E): CPU Intel N4120 (1.1-2.6GHZ), 4G/32G or 4G/64G (memory/disk)
- HDMI x1 display supports 1920 x 1080 resolution, Ethernet 1000M x1, supports GigE Vision cameras
- SC: external USB 2.0 x2 ports; ITAE: USB2.0 x1, USB3.0 x1, trigger x1, flash x1, RS232 x1
- M12 12-core threaded aviation connector, 12V/2A power input
- One input and two output interfaces with settable output delay, no processing needed in the program
- Supports Windows 10 64bit and Ubuntu 16.04 64bit
- Built-in USB 2.0 interface for a dongle, easy to remove
- Integrated light source controller, optional LED lighting component, strobe synchronization
- Low heat, high integration, high cost performance
Specifications
| Model | LS-MV-SCE501GC/M |
|---|---|
| Platform | X86 smart camera (vision software not included; SDK provided for image capture) |
| SC CPU / memory / disk | Intel Atom Z8350 (1.44-1.92GHZ), 2G/32G or 4G/64G (memory/disk) |
| SC(E) CPU / memory / disk | Intel N4120 (1.1-2.6GHZ), 4G/32G or 4G/64G (memory/disk) |
| Display / network | HDMI x1 (supports 1920 x 1080), Ethernet 1000M x1 (supports GigE Vision cameras) |
| Operating system | Default pre-installed Win10 64 bit system, optional Win10 32-bit system or Ubuntu 64 bit system |
| ITA interface | External USB2.0 x2 port, 1000 network port x1, HDMI interface x1, built-in USB2.0 interface x1, support for RS232 x1, RTC clock |
| ITAE interface | External USB 2.0 x1, USB 3.0 x1 port, 1000 Ethernet port x1, HDMI interface x1, built-in USB 2.0 interface x1, support for RS232 x1, RTC clock |
| I/O port | 1 trigger, 1 flash, 1 optical isolation input, and 2 optical isolation outputs |
| Power connector | M12 12-core threaded aviation connector, 12V/2A power input |
| Power supply | 12V~24V |
| Power | ≤18W |
| Lens interface | C/CS interface, providing adapter ring |
| External dimensions | 64×105×35mm (excluding lens mount and rear housing interface) |
| Weight | <500g |
| Working temperature | 0~50℃ |
| Working humidity | 20~80% (no condensation) |
| Storage temperature | 30~60℃ |
| Storage humidity | 20~95% (no condensation) |
| Driver program | Directshow component Halcon specialized component Labview specialized driver OCX component TWAIN component |
| Programming language | C/C++/C#/VB6/VB.NET/Delphi/BCB/Python/Java |
| Other functions | Support any size ROI custom resolution, contrast and gamma adjustment, saturation adjustment, white balance correction, black level correction, custom dead point coordinate correction, ISP image processing acceleration, 3D noise reduction, custom LUT table, frame rate adjustment, custom camera name, etc. |
| Effective pixels | 5MP |
| Sensor type | CMOS |
| Shutter method | Global |
| Maximum resolution | 2448×2048 |
| Pixel size | 3.45μm |
| Frame rate | 40 |
| Target surface size | 2/3" |
| Minimum exposure | 0.0133ms |
| Sensor model | IMX264 |
| Colour | Color/Mono |
| Sensor type (detail) | 2/3" CMOS |
| Color (detail) | Color/Mono |
| Pixel size (detail) | 3.45μm×3.45μm |
| Shutter type | Global |
| Sensitivity | Color: 1146mV 1/30s; Mono: 915mV 1/30s |
| Pixel bit depth | 12bit |
| Maximum resolution (detail) | 2448×2048 |
| Frame rate (detail) | 40FPS |
| Maximum gain (multiple) | 249.9 |
| Exposure time range (ms) | 0.0133~13924 |
| Video output format | Color: Bayer 8/12bit; Mono: Mono 8/12bit |
| CPU main frequency | ITA: Intel Z8350 (1.44-1.92GHZ) / ITAE: Intel N4120 (1.1-2.6GHZ) |
| Memory | ITA: 2G (optional 4G) / ITAE: 4G |
| Disk | 32G (optional 64G) |
| Sensor format | 2/3" |
| Mount | C/CS |
| Mono / colour | Color/Mono |
| Voltage | 12V~24V |
Applications
- Code scanning
- Measurement
- Product recognition on the assembly line
- Positioning
- Single-workstation visual inspection
