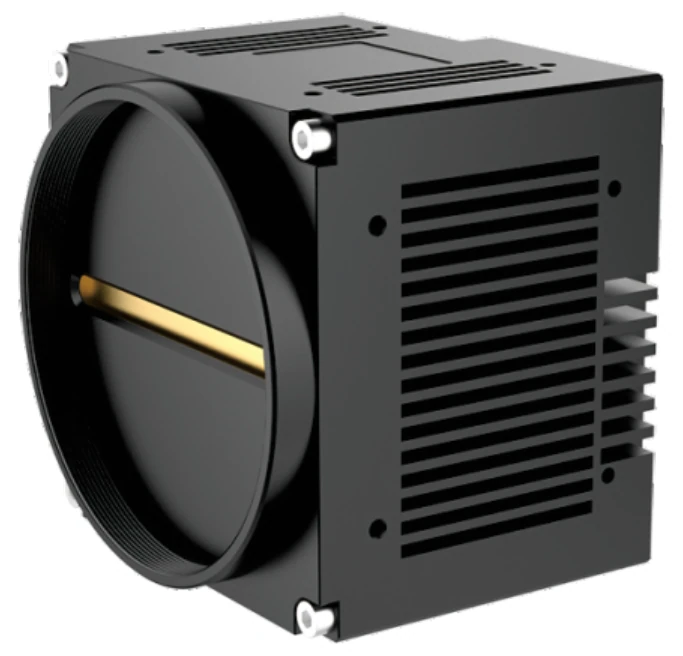

10 GigE line scan camera, general series (MV-L / MV-LC ...-10G), 8K, 10GigE, Mono (LS-MV-LC83BM-10G)

Name: 10 GigE line scan camera, general series (MV-L / MV-LC ...-10G), 8K, 10GigE, Mono (LS-MV-LC83BM-10G)
Brand: LumaSpec Vision
SKU: LS-MV-LC83BM-10G
Price: 1729.00 USD
Availability: InStock

Model LS-MV-LC83BM-10G

10GigE 8K line scan industrial cameras launched to meet the demand for higher resolution and line rate in high-speed, high-precision visual inspection. Widely used in printing, textile, railway, logistics, metallurgy, food, pharmaceutical and material sorting.

Datasheet (PDF) - LS-MV-LC83BM-10G

Features

Flat field correction supported
Multi-exposure automatic switching function
Gain and Offset programmable settings
Reserved fan connector to control camera temperature
Cost significantly reduced compared with a CameraLink interface plus frame grabber
Standard 10 Gigabit network interface; stable communication over Cat6 (super six) network cable
Transmission distance up to 100 meters, backward compatible with Gigabit networks
Effective bandwidth 1200MByte, 10 times Gigabit network, greatly shortening image transmission time and latency
Supports GigE Vision and GenICam, same SDK as Gigabit Ethernet cameras

Specifications

Model	LS-MV-LC83BM-10G
Programming language pack	C/C++/C#/VB6/VB.NET/Delphi/BCB/Python/Java
Operating system	WIINXP, WIN7/8/10 32@64 bit system, Linux and ARM Linux driver, Android platform driver, MAC OS system
Driver	Directshow component Halcon special component Labview special driver OCX component TWAIN component
Other functions	Support any size ROI custom resolution, contrast and gamma adjustment, saturation adjustment, white balance correction, black level correction, custom dead point coordinate correction, ISP image processing acceleration, 3D noise reduction, custom LUT table, frame rate adjustment, custom camera name, etc.
Adwidth	12bit (refers to the width supported by sensor)
Data bit width	10bit (width of data output by camera to user)
Transmission mode	GigE Vision V1.2, GenICam
Transmission interface	10 Gigabit network port (10 gigabit copper cable 10GBase-T, compatible with 100M/1G/2.5G/5G)
Working temperature	0~50℃
Working humidity	20~80% (without condensation)
Storage temperature	30~60℃
Storage humidity	20~95% (without condensation)
Power supply	12V±10% (MV-L083/L163/L164); 12V~24V (±10%) (MV-LC83)
Filter	Black and white cameras: double-sided AR antireflection film as standard; color cameras: 650nm infrared cut filter as standard
Data interface	10G copper cable 10GBase-T, compatible with 100M/1G/2.5G/5G
Effective pixel	8192×4
Sensor type	CMOS
Shutter mode	Global
Pixel size	7μm
Line frequency	109.89KHz
Target size	57.344mm
TDI	4
Minimum exposure	0.004ms
Color	Mono
Pixel bit depth	10bit
Maximum gain (multiple)	16
Exposure time range (ms)	0.004~50
Frame buffer	1GB
Lens mount	M72, flange distance 12mm
Power	<10W
Dimensions	80×80×52.9mm (without lens mount and rear shell interface)
Weight	<550g
Line frequency (detail)	109.89KHz (8bit), 87.7KHz (12bit)
Resolution	8192×4
Video output format	Mono 8/12bit
Mono / colour	Mono
Voltage	12V~24V (±10%)

Applications

Printing
Textile
Railway
Logistics
Metallurgy
Food
Pharmaceutical
Material sorting
