Infrared cameras

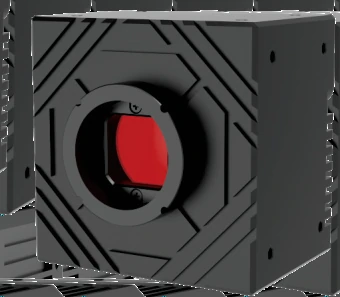

Short-wave infrared area scan camera (IC), 1.3 MP, GigE, Mono (LS-MV-IC130-GE)
Model LS-MV-IC130-GE
LS-MV-IC130-GE is a scientific level, large target area and high-resolution InGaAs short wave imaging and microscopic imaging camera. It is suitable for fluorescence imaging and laser spot infrared imaging, specifically designed for low illumination scientific research, short wave infrared tracking imaging, semiconductor detection, solar cell detection, hyperspectral imaging, etc.
Features
- InGaAs detector, response wavelength 0.4-1.7 um
- Black level correction, good image uniformity
- Gigabit network interface, compatible with vision standard
- Designed for short wave infrared imaging and microscopic imaging for low illumination scientific research
- Drive free, directly supports Halcon, VisionPro and other software, easy for system integration and development
Specifications
| Model | LS-MV-IC130-GE |
|---|---|
| Camera type | Mono |
| Shutter type | Global shutter |
| Frame buffer | 256MB |
| User-defined data area | 2KB |
| Acquisition mode | Continuous/soft trigger/hard trigger |
| Vision standards protocol | GigE Vision V1.2, GenICam |
| Data interface | RJ45 Gigabit Network |
| GPIO | 1x trigger input, 1x flash output; 1x GPI input, 1x GPO output, 1x non-isolated bidirectional IO |
| Power | <12W (including refrigeration) |
| Lens mount | C-Mount |
| Maximum gain (multiple) | 126 |
| Cooling | Semiconductor refrigeration, coolable ambient temperature difference 20℃ |
| Operating temperature | 0~40℃ |
| Working humidity | 20~80% (no condensation) |
| Storage temperature | 30~60℃ |
| Storage humidity | 20~95% (no condensation) |
| Operating system | WINXP, WIN7/8/10 32&64 bit systems, Linux and ARM Linux drivers, Android platform drivers, MAC OS systems |
| Driver | Directshow component, Halcon dedicated component, Labview dedicated driver, OCX component, TWAIN component |
| Programming language pack | C/C++/C#/VB6/VB.NET/Delphi/BCB/Python/Java |
| Other functions | Support any size ROI custom resolution, contrast and gamma adjustment, saturation adjustment, white balance correction, black level correction, custom dead point coordinate correction, ISP image processing acceleration, 3D noise reduction, custom LUT table, frame rate adjustment, custom camera name, etc. |
| Sensor type | 1/2" CMOS |
| Pixel size | 5.0μm x 5.0μm |
| Effective pixels | 1.3MP |
| Maximum resolution | 1280 x 1024 |
| Frame rate | 72FPS |
| Pixel bit depth | 12bit |
| Sensitivity | 30mv 1/30s |
| Exposure time range (ms) | 0.0130~7987.2 |
| Video output format | Mono 8bit |
| Power supply | 12-24V (POE as standard) |
| Dimensions | 69 x 69 x 44mm (without lens mount and rear shell interface) |
| Weight | <500g |
| Mono / colour | Mono |
| Voltage | 12-24V (POE as standard) |
Applications
- Fluorescence imaging
- Laser spot infrared imaging
- Low illumination scientific research
- Short wave infrared tracking imaging
- Semiconductor detection
- Solar cell detection
- Hyperspectral imaging
