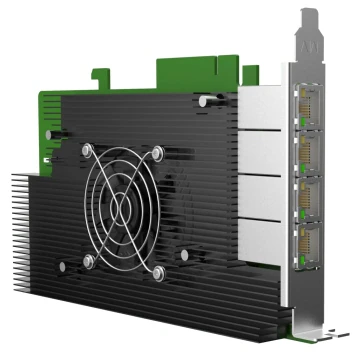

10 GigE card, 10GigE (LS-MV-GB40)
Model LS-MV-GB40
10 gigabit Ethernet card with GigE Vision framing, low latency transmission and CPU load, and large onboard memory for buffering multiple images; it also works as a standard 10 gigabit NIC when not connected to a camera.
Features
- GigE Vision standard protocol framing
- Low latency transmission and CPU load
- High reliability, data packet auto retransmission
- PCIE 3.0x8, maximum bandwidth 40Gbps
- Provides the standard 10 gigabit network adapter function; not connected with a camera it can be used as a standard 10 gigabit NIC port
- Large onboard memory allows buffering of multiple images
Specifications
| Model | LS-MV-GB40 |
|---|---|
| Interface type | 10-gigabit Ethernet |
| Interface rate | 10G/5G/2.5G/1G/100M |
| Transmission media and interface | RJ45 |
| Transmission distance | 100m |
| Standard protocol | IEEE 802.3, IEEE 802.3u, IEEE802.3ab, IEEE802.3x, IEEE802.3af, IEEE802.3at |
| Driver support | windows7/windows 10/ubuntu |
| Features | GigEVision framing |
| Power supply | 12V PCIE/12V ATX |
| Power dissipation | <20W |
| Working temperature | 0~50 degrees |
| Working humidity | 20~80% (no condensation) |
| Storage temperature | 30~60 degrees |
| Storage humidity | 20~95% (no condensation) |
| Interface number | 4 channels |
| Bus type | PCIE3.0 x8 |
| Frame buffer | 4G byte |
| Heat dissipation | Air-cooling |
| Dimensions | 203.5 x 126.25 x 22.1mm; flap: 191.5 x 98.5mm |
| Weight | <500g |
| Channels | 4 |
| Voltage | 12 V (PCIe / ATX) |
