Area scan cameras

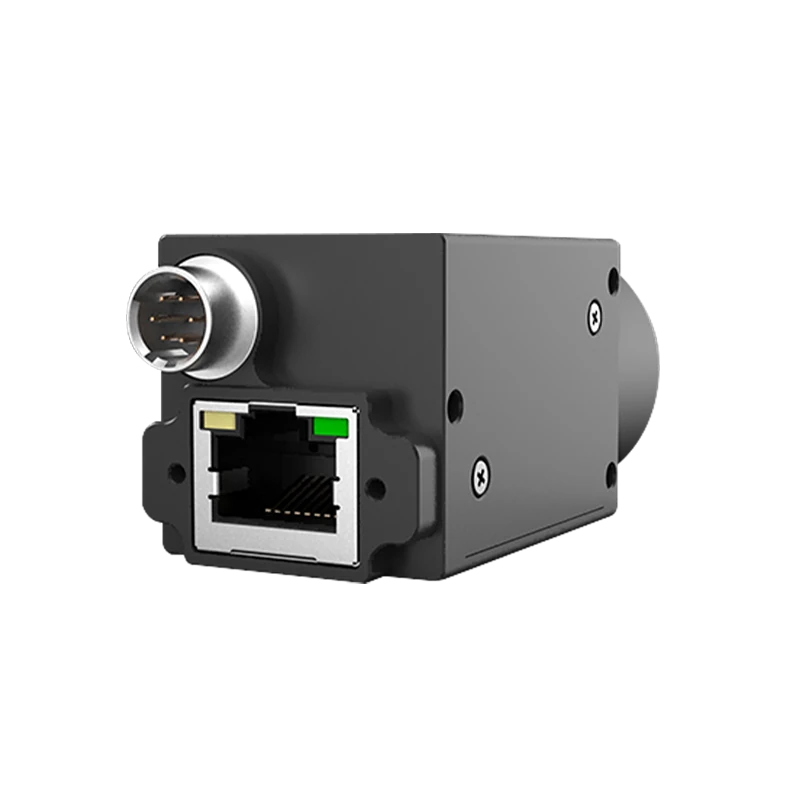

GigE area scan camera, F series with large format size, 12 MP, GigE, Color/Mono (LS-MV-F1202GC-GE/M)
Model LS-MV-F1202GC-GE/M
This series of cameras is compatible with the GigE Vision and GenICam standards, with colour and monochrome CMOS and CCD sensors with global or rolling shutter, from 0.3MP to 65MP. It is fully compatible with LabVIEW, Halcon, VisionPro and other mainstream vision software.
Features
- Unique packet retransmission technology to ensure reliable data transmission
- Built-in hardware accelerates image processing and reduces CPU utilization on the host side
- Supports simultaneous operation of multiple cameras, unlimited number, and arbitrary networking
- Pixels from 0.3MP to 65MP, CCD and CMOS are optional
- Excellent SDK design, as simple as using a USB camera, plug and play
- Supports external trigger and flash synchronization, up to seven channels of GPIO, all photoelectric isolation
- Compatible with the vision standard, driver free and directly supports Halcon, VisionPro and other software
- Gigabit network interface, 100 m long-distance stable transmission, supporting PoE power supply (optional)
- SDK plug and play.
- Supporting 12bit raw data output.
- Multiple cameras work at the same time.
- Supports PC Linux system and ARM Linux system.
- Compatible with Vision protocol and other brand vision software.
Specifications
| Model | LS-MV-F1202GC-GE/M |
|---|---|
| Interface | GigE (RJ45 Gigabit Ethernet) |
| Acquisition mode | Continuous/soft trigger/hard trigger |
| User-defined data area | 2K Bytes |
| Vision standard | GigE Vision V1.2, Genlcam |
| Data interface | RJ45 Gigabit Ethernet interface, backward compatible with 100M network standard |
| Operating system | WIINXP, WIN7/8/10 32@64 bit system, Linux and ARM Linux driver, Android platform driver, MAC OS system |
| Driver | Directshow component, Halcon special component, Labview special driver, OCX component, TWAIN component |
| Programming language pack | C/C++/C#/VB6/VB.NET/Delphi/BCB/Python/Java |
| Working temperature @humidity | 0~50°C @ 20%~80% (no condensation) |
| Storage temperature @humidity | 30~60°C @ 20%~95% (no condensation) |
| Other functions | Support any size ROI custom resolution, contrast and gamma adjustment, saturation adjustment, white balance correction, black level correction, custom dead point coordinate correction, ISP image processing acceleration, 3D noise reduction, custom LUT table, frame rate adjustment, custom camera name, etc. |
| Frame buffer | 128M Bytes |
| GPIO | 1 optical isolation input, 1 optical isolation output; optional 3 inputs and 4 outputs |
| Lens mount | C-Mount (CS port optional) |
| Power supply | 12~24V/POE, 48~57 (POE is optional) |
| Power | <2.5W |
| Dimensions | 29 x 29 x 40 mm (without lens mount and rear shell interface) |
| Weight | <75g |
| Suffix options | GE/F/D/C camera suffix selection (columns as printed: aviation-connector pin definition no., POE power supply, dual aviation-connector extended IO, shrapnel-type / threaded-type aviation connector, C-mount / CS-mount lens interface, state): -T-CL def.1 threaded, C-mount, Recommend; -T-L def.1 threaded, CS-mount, Book; -TPO-CL def.2 POE, dual extended IO, threaded, C-mount, Book; -T1-C def.3 shrapnel, C-mount, Recommend; -T1P-C def.3 POE, shrapnel, C-mount, Book; -T def.4 shrapnel, CS-mount, Planned shutdown; -TPO def.5 POE, dual extended IO, shrapnel, CS-mount, Planned shutdown; -TPO-C def.5 POE, dual extended IO, shrapnel, C-mount, Planned shutdown. ('Book' as printed, presumably made to order.) |
| E ff ective pixels | 12MP |
| Sensor | CMOS |
| Shutter | Global |
| Max resolution | 4090×3000 |
| Pixel size | 3.45μm |
| Frame rate(FPS) | 9.5 |
| Target size | 1.1" |
| Mini exposure | 0.034ms |
| Sensor model | IMX304 |
| Color | Color/Mono |
| Sensor (product page) | 1.1" CMOS , IMX304 |
| Pixel size (product page) | 3.45X3.45μmm |
| Effective Pixels | 12MP |
| Resolution @ frame rate | [email protected] |
| Pixel Bit Depth | 12bit |
| Sensitivity | 1146mV, 915mV |
| I/O Port | 1 optical input, 1 optical output; 3 input 4 output |
| Synchronization | Continuous / software trigger / hardware trigger |
| Maximum Gain | 249.9 |
| Exposure Time(ms) | 0.034~71303 |
| Filter | Standard 650nm Infrared Cut-off Filter/Standard double-sided AR-enhanced film |
| Camera Custom Data | 2K Bytes |
| Video Output Format | Bayer8/Bayer12,Mono8/Mono12 |
| Visual Standard Protoco | GigE Vision V1.2, GenICam |
| Power Requirements | 9~24V(POE is optional) |
| Powerconsumption | < 3.744 W |
| Working Temperature | 0 ~ 5 0 ° C |
| Working Humidity | 20-80% (Non-condensing) |
| Storage Temperature | 30-60 ° C |
| Storage Humidity | 20-95% (Non-condensing) |
| Support System | WINXP, WIN7/8/10 32&64-bit systems, Linux and ARM Linux drivers and Android platform drivers (customizable) |
| Drivers | DirectShow components Halcon special components Labview dedicated drive OCX components TWAIN components |
| Pregramming Language | C / C++ / C# / VB6 / VB.NET / Delphi / BCB / Python |
| Programmable Control | Image size (ROI), camera, exposure time, GAMMA, contrast, brightness, custom LUT, mirror flip, RGB color gain, saturation, sharpness, color to mono, color temperature correction, anti-color, Color.trigger mode, frame rate control |
| Mono / colour | Color/Mono |
Applications
- Electronic semiconductors
- Factory automation
- Food and beverage
- Pharmaceutical packaging
- Image measurement
