Area scan cameras

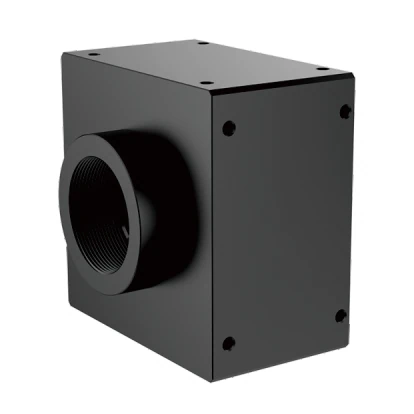

GigE area scan camera, C series, 5.2 MP, GigE, Mono (LS-MV-C501RM-GE)
Model LS-MV-C501RM-GE
This series of cameras is compatible with the GigE Vision and GenICam standards, with colour and monochrome CMOS and CCD sensors with global or rolling shutter, from 0.3MP to 65MP. It is fully compatible with LabVIEW, Halcon, VisionPro and other mainstream vision software.
Features
- Unique packet retransmission technology to ensure reliable data transmission
- Built-in hardware accelerates image processing and reduces CPU utilization on the host side
- Supports simultaneous operation of multiple cameras, unlimited number, and arbitrary networking
- Pixels from 0.3MP to 65MP, CCD and CMOS are optional
- Excellent SDK design, as simple as using a USB camera, plug and play
- Supports external trigger and flash synchronization, up to seven channels of GPIO, all photoelectric isolation
- Compatible with the vision standard, driver free and directly supports Halcon, VisionPro and other software
- Gigabit network interface, 100 m long-distance stable transmission, supporting PoE power supply (optional)
Specifications
| Model | LS-MV-C501RM-GE |
|---|---|
| Interface | GigE (RJ45 Gigabit Ethernet) |
| Acquisition mode | Continuous/soft trigger/hard trigger |
| User-defined data area | 2K Bytes |
| Vision standard | GigE Vision V1.2, Genlcam |
| Data interface | RJ45 Gigabit Ethernet interface, backward compatible with 100M network standard |
| Operating system | WIINXP, WIN7/8/10 32@64 bit system, Linux and ARM Linux driver, Android platform driver, MAC OS system |
| Driver | Directshow component, Halcon special component, Labview special driver, OCX component, TWAIN component |
| Programming language pack | C/C++/C#/VB6/VB.NET/Delphi/BCB/Python/Java |
| Working temperature @humidity | 0~50°C @ 20%~80% (no condensation) |
| Storage temperature @humidity | 30~60°C @ 20%~95% (no condensation) |
| Other functions | Support any size ROI custom resolution, contrast and gamma adjustment, saturation adjustment, white balance correction, black level correction, custom dead point coordinate correction, ISP image processing acceleration, 3D noise reduction, custom LUT table, frame rate adjustment, custom camera name, etc. |
| Frame buffer | 256M Bytes |
| Lens mount | C-Mount |
| Power supply | 12V |
| Power | <12W |
| Dimensions | 59.5 x 59.5 x 35.5 mm (without lens mount and rear shell interface) |
| Weight | <250g |
| Suffix options | GE/F/D/C camera suffix selection (columns as printed: aviation-connector pin definition no., POE power supply, dual aviation-connector extended IO, shrapnel-type / threaded-type aviation connector, C-mount / CS-mount lens interface, state): -T-CL def.1 threaded, C-mount, Recommend; -T-L def.1 threaded, CS-mount, Book; -TPO-CL def.2 POE, dual extended IO, threaded, C-mount, Book; -T1-C def.3 shrapnel, C-mount, Recommend; -T1P-C def.3 POE, shrapnel, C-mount, Book; -T def.4 shrapnel, CS-mount, Planned shutdown; -TPO def.5 POE, dual extended IO, shrapnel, CS-mount, Planned shutdown; -TPO-C def.5 POE, dual extended IO, shrapnel, C-mount, Planned shutdown. ('Book' as printed, presumably made to order.) |
| Effective pixels | 5MP |
| Sensor type | CMOS |
| Shutter method | Rolling |
| Max resolution | 2640 x 1968 |
| Pixel size | 6.6μm |
| Frame rate (FPS) | 21.5 |
| Target size | 4/3" |
| Min exposure | 0.011ms |
| Sensor model | OEM |
| Color | Mono |
| Resolution@frame rate | 2640 x [email protected] |
| Pixel size (technical table) | 6.6μm x 6.6μm |
| Pixel bit depth | 12bit |
| Sensitivity | 389mV 1/30s |
| Maximum gain (multiple) | 160 |
| Exposure time range (ms) | 0.011~5767.2 |
| Video output format | Mono: Mono 8/12bit |
| GPIO | 1-channel trigger input, 1-channel flash output; 1-channel GPI input, 1-way GPI output, 1-way non-isolated bidirectional IO |
| Mono / colour | Mono |
| Voltage | 12V |
Applications
- Electronic semiconductors
- Factory automation
- Food and beverage
- Pharmaceutical packaging
- Image measurement
