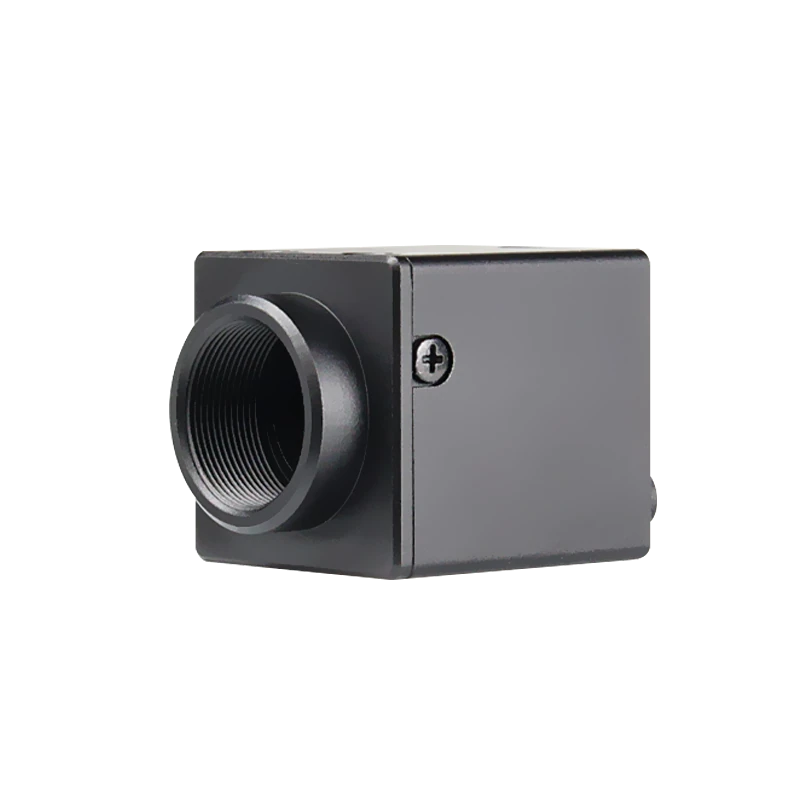

Mini area scan camera (RT series), 4.9 MP, USB3, Color/Mono (LS-MV-501UC/M60-RT)
Model LS-MV-501UC/M60-RT
This series of ultra-miniature USB3.0 area scanning cameras include both color and monochrome models,rolling shutter. Optional M10.5 or M12 lens interfaces are available.
Features
- 16g ultra-light weight.
- Maximum transfer speed reaches 300 MByte/s.
- Low latency for image acquisition.
- Power consumption is as low as 1.2W, which is more than 50% lower than the power consumption of peer cameras.
- External dimension:20mmx20mmx22mm.
Specifications
| Model | LS-MV-501UC/M60-RT |
|---|---|
| Target size | 1/2.5" |
| Resolution | 2568*1920 |
| Pixel size | 2.2um |
| Shutter | Rolling |
| Frame rate | 60FPS |
| Data interface | USB3.0 |
| Lens Mount | M10.5 |
| Color/Mono | Color/Mono |
| Remark | Ultra - miniature |
| Camera type | Ultra micro USB3.0 camera |
| Sensor Type | Rolling shutter |
| Effective pixels | 5MP |
| Optical Size | 1/2.5" |
| Mono/Color | Color/Mono |
| Max Frame Rate | ROI of any size (minimum ROI resolution 96x96) |
| Gain | 1.0x–15x |
| Dynamic range | 74.3dB |
| Exposure Time | 8us-199ms 998us |
| Exposure Mode | Manual exposure/auto exposure/area exposure |
| Output Image Format | RAW8, BMP24, MONO8 |
| Trigger Mode | Continuous operation, software trigger, hardware triggerTrigger |
| Spectral Response | Color:390nm650nm;Mono:380nm940nm |
| External trigger interface | 4 pin PH1.5mm 180° Wafer holder, TTL-5.0V level |
| Power supply | USB 5V power supply |
| Typical Power Consumption | Max.Power consumption:<1.2W,Standby:0.5W |
| Lens Interface | M10.5 |
| Dimension | 20mmx20mmx22mm (excluding lens interface length) |
| Weight | 16g |
| Temperature | Operating temperature:10℃~50℃ |
| Humidity | 5% ~ 90%RH (non-condensing) |
| Standard accessories | 3m USB3.0 cable |
| Mono / colour | Color/Mono |
| Voltage | USB 5V power supply |
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guideOther sizes in the Mini area scan camera (RT series) series
| Model | Size | Price | Availability | |
|---|---|---|---|---|
| LS-MV-501UC/M60-RT-V1 | 4.9 MP, USB3, Color/Mono | $689.00 | 3 in stock | View |
