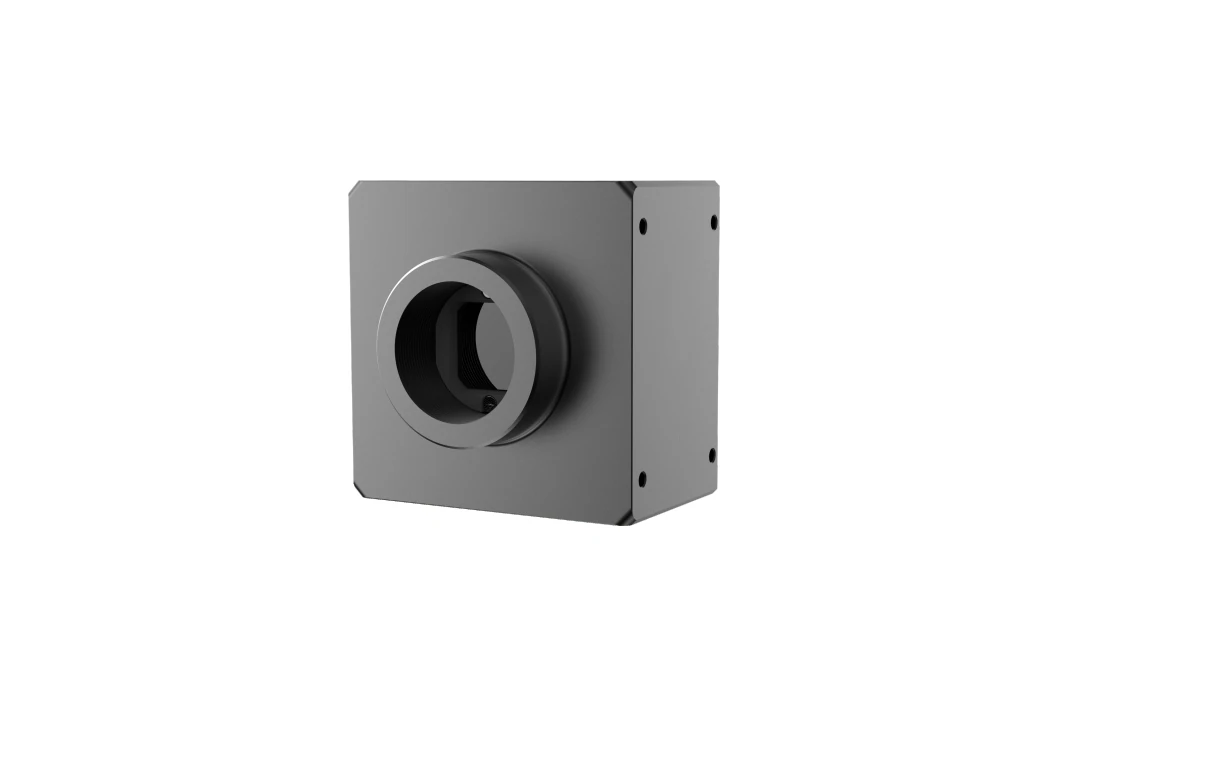

Dual USB3.0 area scan camera (LS-MV-2SU-2500GM), 26 MP, USB3, Mono (LS-MV-2SU-2500GM)
Model LS-MV-2SU-2500GM
Supports two USB3.0 interfaces with up to 10Gbps transmission bandwidth; with a high-speed sensor the 25MP camera reaches up to 30FPS. Low CPU occupancy using DMA transmission.
Features
- Programmable IO
- Dual USB3.0 output, 2 times faster than the original
- External trigger strobe synchronous photography
- 8bit raw data output
- Fully compatible with the GigE camera SDK, seamless replacement
- Multiple cameras on one computer work stably without dropping or losing frames for a long time
- Supports PC Linux and ARM Linux, can be integrated into embedded devices
- Compatible with vision protocols: Halcon, VisionPro, LabVIEW and other vision software
Specifications
| Model | LS-MV-2SU-2500GM |
|---|---|
| Operating system | WIINXP, WIN7/8/10 32@64-bit system, Linux and ARM Linux driver (customizable), Android platform driver (customizable) |
| Driver | Directshow component Halcon special component Labview special driver OCX component TWAIN component |
| Programming language pack | C/C++/C#/VB6/VB.NET/Delphi/BCB/Python/Java |
| Other functions | Support any size ROI custom resolution, contrast and gamma adjustment, saturation adjustment, white balance correction, black level correction, custom dead point coordinate correction, ISP image processing acceleration, 3D noise reduction, custom LUT table, frame rate adjustment, custom camera name, etc. |
| Tailpiece suffix options (AU/FU/CU/2SU) | T1V-C: line sequence definition 1, 12V power supply, power supply shrapnel type aircraft head, C-mount, Recommend; -T: line sequence definition 2, aircraft head, CS-mount, planned shutdown; -T-C: line sequence definition 2, aircraft head, C-mount, planned shutdown; -TV-C: line sequence definition 3, 12V power supply, aircraft head, C-mount, planned shutdown |
| Connector pinout -T1V-C (Port A) | 1 Red PWR+ (camera power input positive); 2 White GPI1+/TRIG_IN+ (default trigger input); 3 Brown GPI2/GPO2 (non-isolated bidirectional IO); 4 Green GPO1+/STRB_OUT+ (default flash output); 5 Yellow GPO1-/STRB-OUT-/TRIG_IN- (GPIO common negative terminal); 6 Black PWRGND |
| Connector pinout -T, -T-C | 1 Green GPO1+/STRB_OUT+ (default flash output); 2 Yellow GPO1-/STRB_OUT- (default flash output); 3 White GPI1+/TRIG_IN+ (default trigger input); 4 Brown GPI1-/TRIG_IN- (default trigger input); 5 Red GPO2+; 6 Black GPO2 |
| Connector pinout -TV-C (Port A) | 1 Green GPO1+/STRB_OUT+; 2 Yellow GPO1-/STRB_OUT; 3 White GPI1+/TRIG_IN+; 4 Brown GPI1-/TRIG_IN-; 5 Red PWR+; 6 Black PWRGND |
| Sensor | 1.1"CMOS |
| Sensor type | GMAX0505 |
| Camera type | Mono |
| Image size (pixel size) | 2.5μm×2.5μm |
| Effective pixel | 25MP |
| Resolution@frame rate | [email protected] |
| Sensitivity | 1.03x10^7 e-/((W/m^2)·s) @500nm |
| GPIO | 1 opto-coupler isolated input, 1 opto-coupler isolated output, 1 non-isolated input and output |
| Exposure method | Frame exposure |
| Signal-to-noise ratio | 36dB |
| Dynamic range | >65dB |
| AD width | 12bit |
| Output pixel width | 12bit |
| Maximum gain (times) | 16.5 |
| Exposure time range (ms) | 0.0068~812.5 |
| Frame buffer | 256M Byte |
| User-defined data | 2K Byte |
| Video output format | Mono 8bit |
| Visual standards protocol | USB3Vision, GenICam |
| Data interface | 2-channel USB3.0 |
| Power supply | USB 5V / Aviation head power supply 12V~24V |
| Power | <5W |
| Lens interface | C-Mount |
| Dimension | 59.5x59.5x38.5mm (without lens mount and rear shell interface) |
| Weight | <300g |
| Working temperature | 0~50℃ |
| Working humidity | 20~80% (no condensation) |
| Storage temperature | 30~60℃ |
| Storage humidity | 20~95% (no condensation) |
| Sensor format | 1.1" |
| Mount | C-mount |
| Shutter | Global (frame exposure) |
| Mono / colour | Mono |
| Voltage | USB 5V / Aviation head power supply 12V~24V |
Applications
- Electronic 3C
- Automated semiconductor
- Logistics code scanning
- Intelligent transport
- Biomedical
- Packaging and printing
