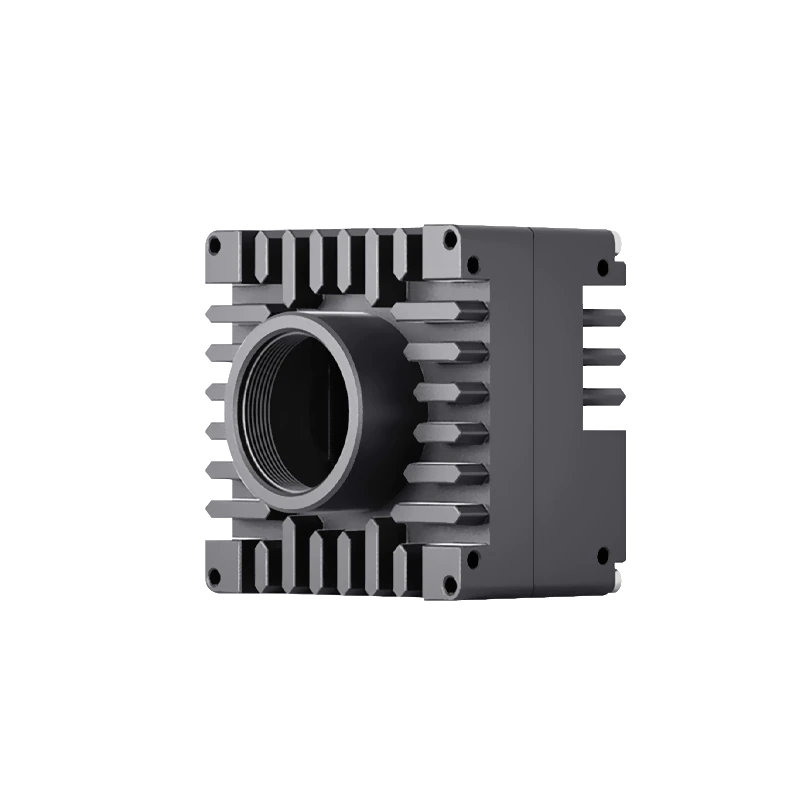

Double USB3.0 area scan camera (DU series), 26 MP, USB3, Mono (LS-MV-2500UM30-DU)
Model LS-MV-2500UM30-DU
This series of Mono industrial cameras with dual USB3.0 interfaces boasts advantages such as fast data transmission and no need for additional acquisition cards
Features
- 10G communication bandwidth.
- High performance hardware image processor, support a variety of image processing, reduce the host CPU consumption.
- Built-in large capacity frame buffer to ensure reliable and real-time transmission.
- Ultra-low power fanless design, no dust and zero vibration.
Specifications
| Model | LS-MV-2500UM30-DU |
|---|---|
| Target size | 1.1" |
| Resolution | 5120*5120 |
| Pixel size | 2.5um |
| Shutter | Global |
| Frame rate | 30FPS |
| Data interface | USB3.0*2 |
| Lens Mount | C |
| Color/Mono | Mono |
| Sensor Type | Global Shutter |
| Resolution (product page) | 5120×5120 |
| Optical Size | 1.1" |
| Mono/Color | Mono |
| Max Frame Rate | 30FPS |
| Gain | 1.0X-5.0X |
| Dynamic range | 65db |
| Exposure Time | 12us-6s 610ms120us |
| SNR | 40db |
| Output Image Format | RAW,MONO |
| Trigger Mode | Hardware Trigger, Software Trigger |
| Bit depth | 12bit |
| Sensitivity | 1.03x10^7e/(W/m)s) |
| Power supply | USB5V power supply |
| Typical Power Consumption | <5W |
| Lens Interface | C-Mount |
| Spectral response | 390nm-1050nm |
| Dimension | 56mmx56mmx36.2mm |
| Weight | <185g |
| IP Protection Rating | IP30 |
| Temperature | Operating temperature:10℃~50℃ |
| Humidity | 5% ~ 90%RH (non-condensing) |
| Compatibility | USB3.0Vision,GenlCam,HALCON,LabView,OpenCV |
| Certifications | CE,FCC,RoHS |
| Mono / colour | Mono |
| Voltage | USB5V power supply |
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guideOther sizes in the Double USB3.0 area scan camera (DU series) series
| Model | Size | Price | Availability | |
|---|---|---|---|---|
| LS-MV-2501UM47-DU | 17 MP, USB3, Mono | $479.00 | 3 in stock | View |
| LS-MV-2502UM30-DU | 26 MP, USB3, Mono | $2,219.00 | 4 in stock | View |
