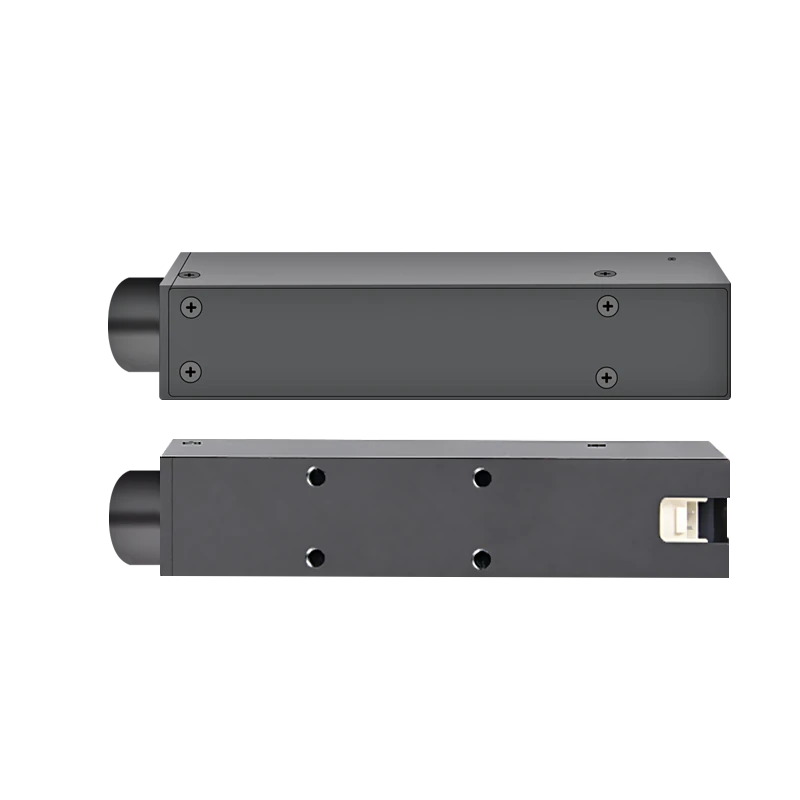

GigE board camera with split sensor (GB series), M12-mount (LS-MV-135GM120-GB)
Model LS-MV-135GM120-GB
This series of GigE area scan cameras is monochrome, global shutter. Flexible cable connection, the longest support 300mm communication distance.
Features
- 15.8mm ultra narrow single motherboard design.
- The main board is connected with the SENSOR board using soft cable,flexible installation.
- Hardware image processor that optimizes the image for the matching algorithm.
- Built-in large capacity frame buffer to ensure real-time and reliable transmission of multi-camera.
- Dimensions:20mmx18mmx94mm.
Specifications
| Model | LS-MV-135GM120-GB |
|---|---|
| Target size | 1/4" |
| Resolution | 1000*1000 |
| Pixel size | 2.7um |
| Shutter | Global |
| Frame rate | 120FPS |
| Data interface | GigE |
| Lens Mount | M12 |
| Color/Mono | Mono |
| Sensor Type | Global Shutter |
| Resolution (product page) | 1000×1000 |
| Optical Size | 1/4" |
| Mono/Color | Mono |
| Max Frame Rate | 120FPS |
| Gain | 1.0x-32.0x, step: 0.125x |
| Trigger interface | 4 pin Wafer socket |
| Exposure Time | 7us-523ms876us |
| Exposure function | Manual exposure/auto exposure/area exposure |
| Output Image Format | RAW8/RAW12(Original image)RAW8/RAW16/MONO8/MONO16 |
| Trigger Mode | Hardware Trigger, Software Trigger |
| Bit depth | 10bit |
| Support Multi-camera | 16 units |
| Power supply | DC9-28V |
| Typical Power Consumption | <2W |
| Lens Interface | M12 |
| Spectral response | 300nm-1000nm |
| Dimension | 20mmx18mmx94mm (Including the shell) |
| Weight | ≈ 48g |
| IP Protection Rating | IP30 |
| Temperature | Operating:10℃~50℃,Storage:30℃~70℃ |
| Humidity | Operating:10% ~ 60%RH (non-condensing),Storage:10%-80%RH |
| Standard fittings | 3 meters network cable |
| Mono / colour | Mono |
| Voltage | DC9-28V |
