Area scan cameras

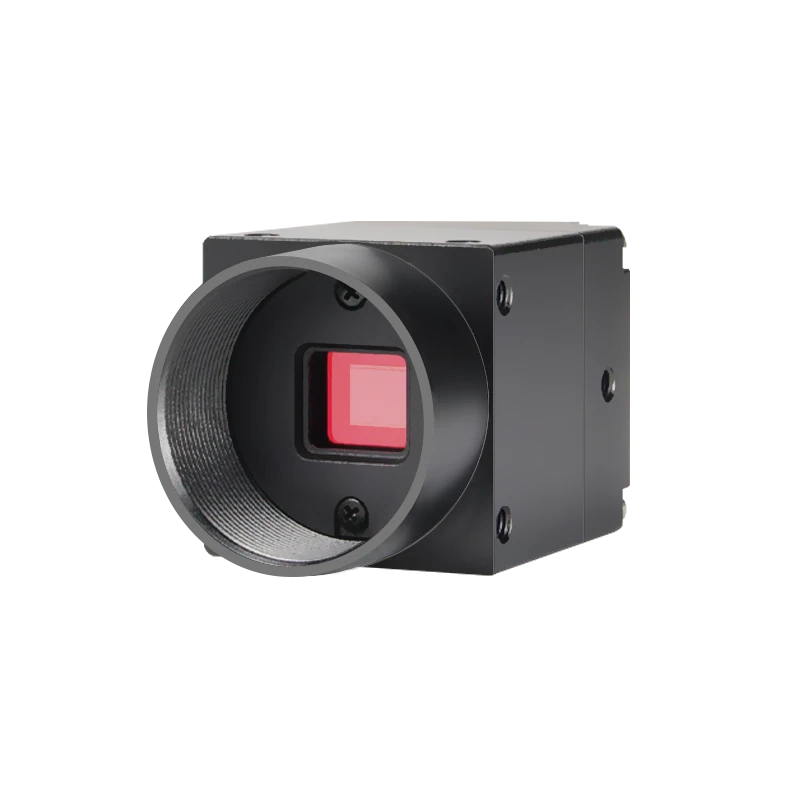

GigE area scan camera (GV / GS / RS series), 0.4 MP, GigE, Color (LS-MV-040GC313-GV)
Model LS-MV-040GC313-GV
This series of GigE area scan cameras includes color and monochrome, global and rolling shutter. Gigabit network interface, 100 meters long distance stable transmission.
Features
- Built-in large capacity frame buffer,with packet retransmission technology, to ensure reliable and real-time transmission.
- Built-in ISP, support gamma, contrast, LUT, reduce host CPU consumption, improve real-time performance.
- Support multiple cameras work at the same time, the number is not limited, any networking.
- New appearance structure,higher installation accuracy.
Specifications
| Model | LS-MV-040GC313-GV |
|---|---|
| Target size | 1/2.5" |
| Resolution | 720*540 |
| Pixel size | 8.0um |
| Shutter | Global |
| Frame rate | 300FPS |
| Data interface | GigE |
| Lens Mount | C |
| Color/Mono | Color |
| Sensor Type | CMOS, Global Shutter |
| Resolution (product page) | 720×540 |
| Optical Size | 1/2.5" Diagonal 7.2mm |
| Mono/Color | Color |
| Max Frame Rate | 300FPS@720×540 Bayer8 |
| Gain | 1x15.5x; step 0.2x |
| Dynamic range | 68.5 dB |
| Exposure Time | 1μs~10sec, step 1μs |
| Exposure Mode | Support Auto Exposure/Manual Exposure/Single Exposure |
| Output Image Format | Bayer8 /Bayer12 /Mono8 /Mono12 |
| Trigger Mode | Hardware Trigger, Software Trigger |
| Image Cache | 1Gbit |
| I/O Interface | 1 optocoupler input, 1 optocoupler output, 1 bi-directional IO (no optocoupler isolation) |
| Power supply | POE power supply or DC 12-24V (±10%) power supply |
| Typical Power Consumption | 2.2W@24VDC |
| Lens Interface | C port, optical back focus 17.5mm |
| IO and Power Interface | 6 pole industrial circular connector |
| Filter | 380nm-650nm bandpass filter |
| Dimension | 29mm x 29mm x 31.5mm (lens connector not included) |
| Weight | Approx. 51.6g |
| IP Protection Rating | IP40 (with lens and cables properly installed) |
| Temperature | Operating temperature:10℃~50℃, Storage temperature:-20℃ ~ 70℃ |
| Humidity | 5% ~ 90%RH (non-condensing) |
| Software | SDK development kit, and associated demo/calibration software BasedCam3 |
| Operating Systems | Windows7/10 32/64bit; PC Linux 32/64bit |
| Protocols/Standards | WIGigE Vision V1.2, GenICam |
| Compatible Software | NI MAX, Halcon, VisionPro, MV Viewer, MVS |
| Certifications | CE, RoHS |
| Mono / colour | Color |
| Voltage | POE power supply or DC 12-24V (±10%) power supply |
