Area scan cameras

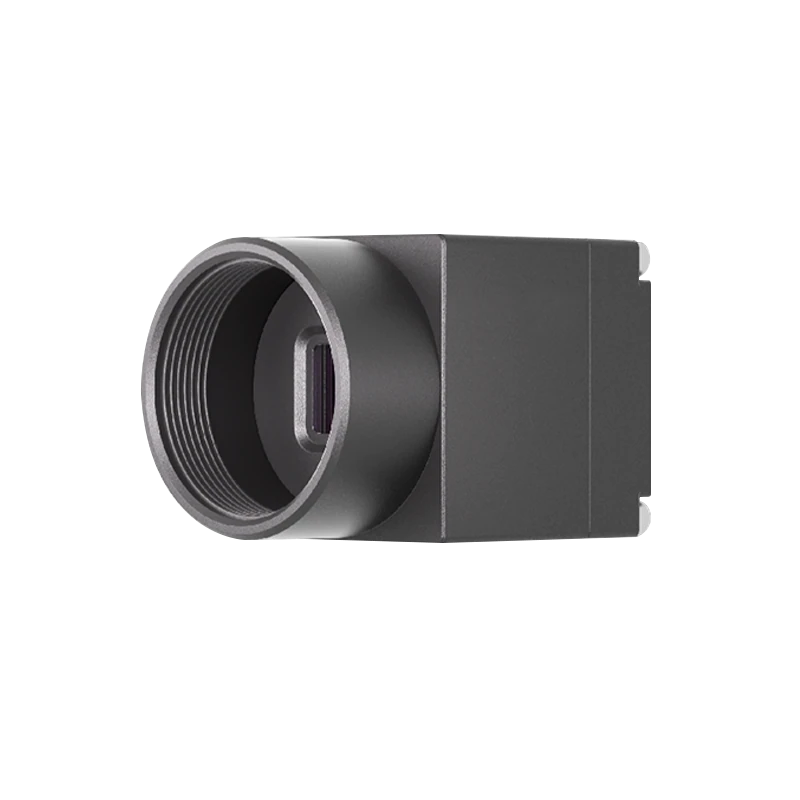

USB3.0 area scan camera (GS / RS series), 0.3 MP, USB3, Color (LS-MV-032UC721-GS)
Model LS-MV-032UC721-GS
This series of USB3.0 area scan cameras includes color and monochrome, global and rolling shutter.Fastest transmission speed reaches 440MByte/s.
Features
- Ultra-small size,industry-universal fixing holes.
- Low power consumption,strong stability.
- Built-in large-capacity image cache to ensure reliable and real-time transmission.
- Third party visual development software,based on USB3.0 Vision,GenICam development.
- Camera hardware graphics accelerator implements image preprocessing.
- Dimensions: 29mm×29mm×29mm.
Specifications
| Model | LS-MV-032UC721-GS |
|---|---|
| Sensor Type | Global Shutter |
| Resolution | 640 × 480 |
| Optical Size | 1/5" |
| Pixel Size | 4.0um×4.0um |
| Mono/Color | Color |
| Max Frame Rate | 721FPS |
| Gain | 1x~3x,step0.125x |
| Dynamic range | 40db |
| Exposure Time | 5us-43ms |
| Output Image Format | RAW8RAW16BGR24MONO8MONO16 |
| Trigger Mode | Hardware Trigger, Software Trigger |
| Image Cache | 1Gbit |
| Data Interface | USB3.0 |
| Power supply | USB5V power supply |
| Typical Power Consumption | Working:1.64W,standby:1.12W |
| Lens Interface | C-Mount |
| Dimension | 29mmx29mmx29mm (lens connector not included) |
| Weight | Approx. 40g |
| IP Protection Rating | IP30 |
| Temperature | Operating temperature:10℃~50℃ |
| Humidity | 5% ~ 90%RH (non-condensing) |
| Compatibility | USB3.0Vision,GenlCam,HALCON,LabView,OpenCV |
| Operating Systems | Windows7/10 32/64bit; PC Linux 32/64bit |
| Certifications | CE,FCC,RoHS |
| Shutter | Global Shutter |
| Mono / colour | Color |
| Voltage | USB5V power supply |
