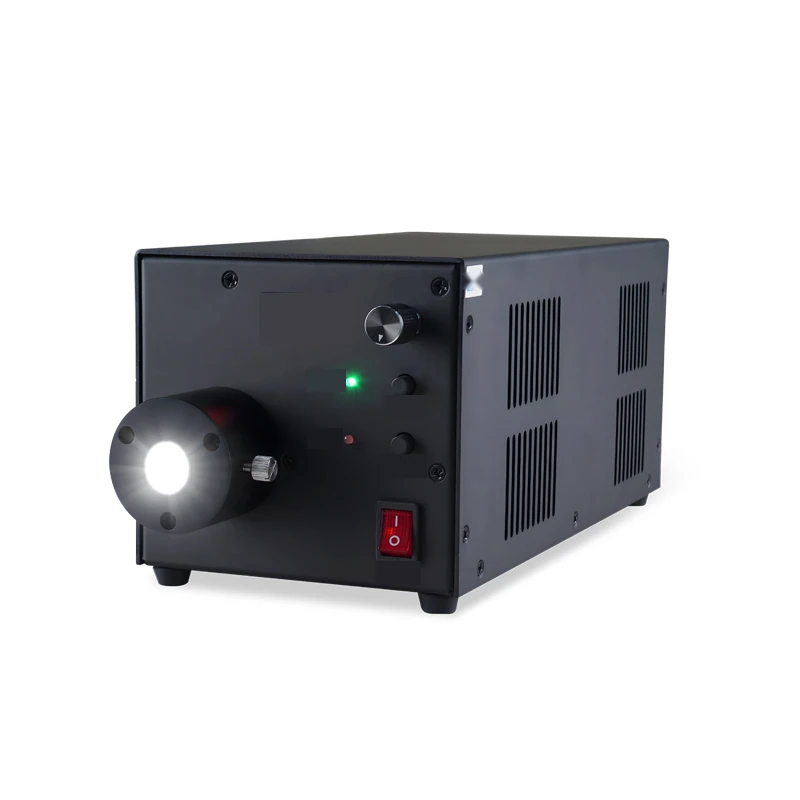

Fiber optic light box (MHAB) (LS-MHAB150)
Model LS-MHAB150
Illuminance at 20mm: approx. 8,000,000 Lx. High brightness achieved via multi-group coupling lens design. Ideal for medical endoscopes and industrial semiconductor module applications.
Features
- Illuminance at 20mm: approx. 8,000,000 Lx
- High brightness achieved via multi-group coupling lens design
- Ideal for medical endoscopes and industrial semiconductor module applications
Specifications
| Model | LS-MHAB150 |
|---|---|
| Model as printed | LS-MHAB150-W |
| Output power | 150W |
| Dimension | L299xW120xH116.7(mm) |
| External trigger voltage | External trigger voltage 5-24V |
| Input Voltage | 100-240VAC |
| Output Channels | 1 Channel |
| Baud Rate | 19200bps |
| Power Input Frequency Range | 50/60Hz |
| Brightness Adjustment Method | Manual encoder knob adjustment, PC remote adjustment |
| Drive mode | Constant Current |
| Brightness Adjustment Level | 256/1024 levels switchable via button and encoder knob combination |
| Save Function | Automatically saves brightness settings after power-off |
| External Trigger Frequency | Determined by external trigger signal; up to 8KHz when duty cycle is 50% |
| External Trigger Response Time | 20us |
| Power-On Response Time | ≦6S |
| Product Protection Functions | Overcurrent protection, power-off memory, temperature protection |
| Applicable Beam Diameter | Fiber core diameter ∅6-14mm |
| Communication mode | RS232 |
| Operating temp. & humidity | Temperature : 0 to 40ºC,humidity : 20 to 85%RH(Non-condensing) |
| Storage Environment | Temperature : 0 to50ºC,humidity : 20 to 85%RH(Non-condensing) |
| Normal on/close switch | The initial operating state (continuous on/off) can be adjusted using a button and encoder knob combination. |
| Shipping weight | 0.20 kg |
Applications
- Used with electronic endoscopic microscopes
- Automotive endoscopes
- Industrial endoscopes
- Optical fibers
