Machine vision lenses

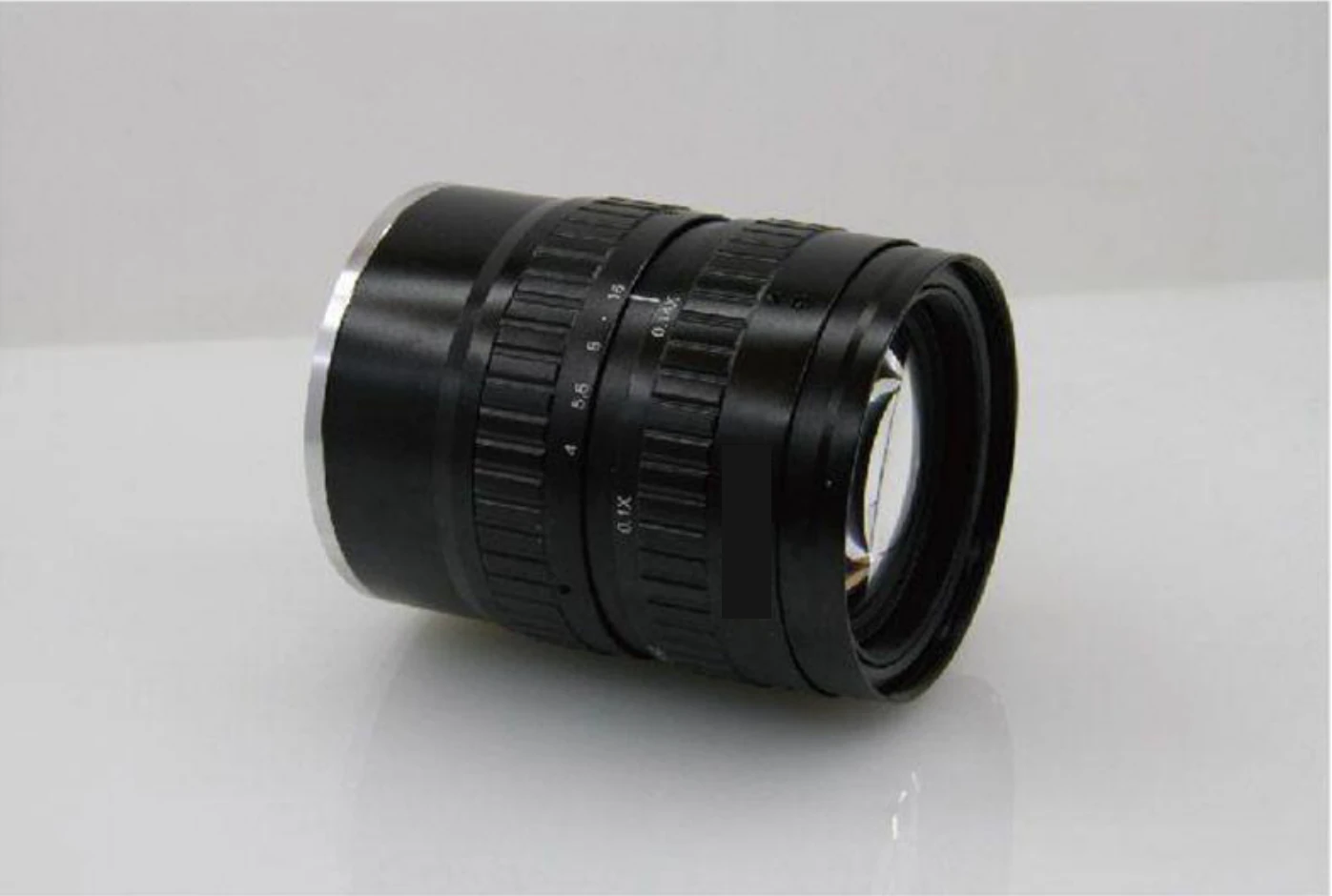

High resolution F-mount large format lens, 90 mm, F-Mount (LS-MF9015A)
Model LS-MF9015A
Super-high-resolution large format F-mount lenses for 3.5 µ pixels, supporting 29MP to 71MP sensors, with better optical performance than SLR lenses; applied to large-format, high-precision detection.
Features
- Super high resolution for 3.5µ
- Support 29MP to 71MP sensor
- Better optical performance than SLR lens
- Standard EFL and magnification available
- Applied to large format and high precision detection
Specifications
| Model | LS-MF9015A |
|---|---|
| Focal length | 90mm |
| Magnification range | 0.08X-0.19X |
| Mount | F-Mount |
| Distortion | <0.01% |
| EFL | 90mm |
| Standard magnification | 0.155X |
| Image size (dia.) | dia. 64 |
| F/NO | 4.0-16 |
| Optical distortion | 0.05% |
| Working distance | 651.1 |
| Conjugate distance | 792.6 |
| Flange distance | 46.5 |
| Filter size | M67×P0.75 |
| Sensor format | dia. 64 mm image circle |
| Aperture | F4.0-16 |
| Shipping weight | 0.38 kg |
Applications
- Electronic equipment: yes or no / identify - identify the colour of the battery pack
- Electronic component: height - detecting metal markings
- Liquid crystal, semiconductor: calculate - SD card number calculation
Complete the station
Drive the light from a light controller and pair it with a lens for your field of view and working distance.
