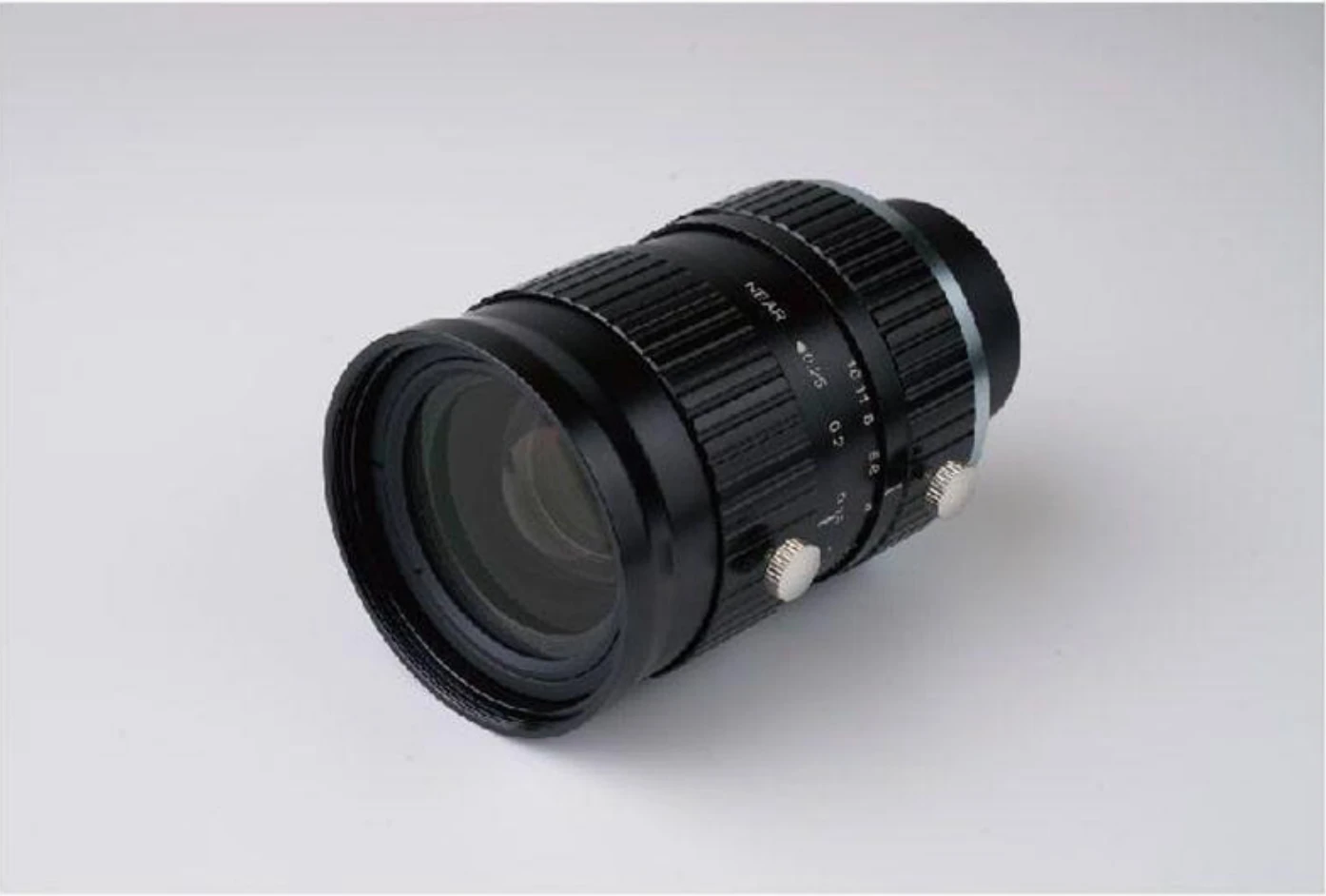

Large format lens, 35 mm, F-Mount (LS-MF3502A)
Model LS-MF3502A
Large format lenses with max image circle up to 43 mm, supporting 29MP sensors and suitable for 4K line scan cameras with 5 µ/7 µ pixels; better optical performance than SLR lenses, with standard EFL and magnification options, applied to printing and packaging inspection.
Features
- Support 29MP sensor / suitable for 4k line scan cameras with 5µ/7µ pixel size
- Max image circle is up to 43mm
- Better optical performance than SLR lens
- Standard EFL and magnification available
- Applied to printing and packaging inspection
Specifications
| Model | LS-MF3502A |
|---|---|
| Focal length range | 35-90mm |
| Magnification range | 0.01X-0.4X |
| Mount | F-Mount |
| Distortion | <0.01% |
| Note | Drawings on f03-p020 show LS-MF3502A, LS-MF3515A, LS-MF4010A, LS-MF5015A, LS-MF6016A, LS-MF8003A; LS-MF9005A is in the table only. Feature text says max image circle up to 43 mm while some table rows list larger image sizes. |
| EFL | 35mm |
| Standard magnification | 0.1X |
| Image size (dia.) | dia. 45 |
| F/NO | 2.8-16 |
| Optical distortion | <0.4% |
| Working distance | 350.9 |
| Conjugate distance | 474.5 |
| Flange distance | 46.5 |
| Filter size | M58×P0.75 |
| Sensor format | dia. 45 mm image circle |
| Aperture | F2.8-16 |
| Shipping weight | 0.38 kg |
Applications
- Industrial: blemish / stain - detect defects and blemishes on steel plates
- Electronic equipment: yes or no / identify - identify the colour of the battery pack
- Electronic component: height - detecting metal markings
- Liquid crystal, semiconductor: calculate - SD card number calculation
