Machine vision lenses

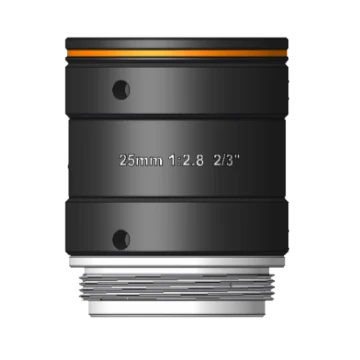

25mm, F2.8, 2/3", 10MP Lens, C-Mount (LS-MF2528M-10MPE)
Model LS-MF2528M-10MPE
25mm, F2.8, 2/3", 10MP Lens, C-Mount. High resolution and consistency of image clarity Lower distortion and higher relative illumination rate
Features
- High resolution and consistency of image clarity
- Lower distortion and higher relative illumination rate
- Excellent performance at high and low temperature
- Good optical performance at short working distance
Specifications
| Model | LS-MF2528M-10MPE |
|---|---|
| Focal length | 25 mm |
| F-number | F2.8 to F16 |
| Image size | Ø11.2 mm (2/3") |
| Distortion | –0.48% |
| Minimum object distance | 0.15 m |
| Field of view | D (11.01 mm): 22.81°; H (8.45 mm): 17.12°; V (7.07 mm): 14.14° |
| Iris control | Manual |
| Focus control | Manual |
| Filter thread | M27 × P0.5 |
| Mount | C-mount |
| Flange back length | 17.526 mm |
| Dimension | Ø29 mm × 29.28 mm (Ø1.1" × 1.2") |
| Weight | 46 g (0.1 lb.) |
| Temperature | –10 °C to 50 °C (14 °F to 122 °F) |
| Certification | RoHS 2.0 |
| Shipping weight (estimated) | 0.16 kg |
Complete the station
Drive the light from a light controller and pair it with a lens for your field of view and working distance.
Light controllers LensesSelection guideOther sizes in the MF-10MPE series lenses series
| Model | Size | Price | Availability | |
|---|---|---|---|---|
| LS-MF0828M-10MPE | $49.00 | 5 in stock | View | |
| LS-MF1228M-10MPE | $59.00 | 4 in stock | View | |
| LS-MF1628M-10MPE | $59.00 | 4 in stock | View | |
| LS-MF3528M-10MPE | $89.00 | 2 in stock | View | |
| LS-MF5028M-10MPE | $99.00 | 4 in stock | View |
