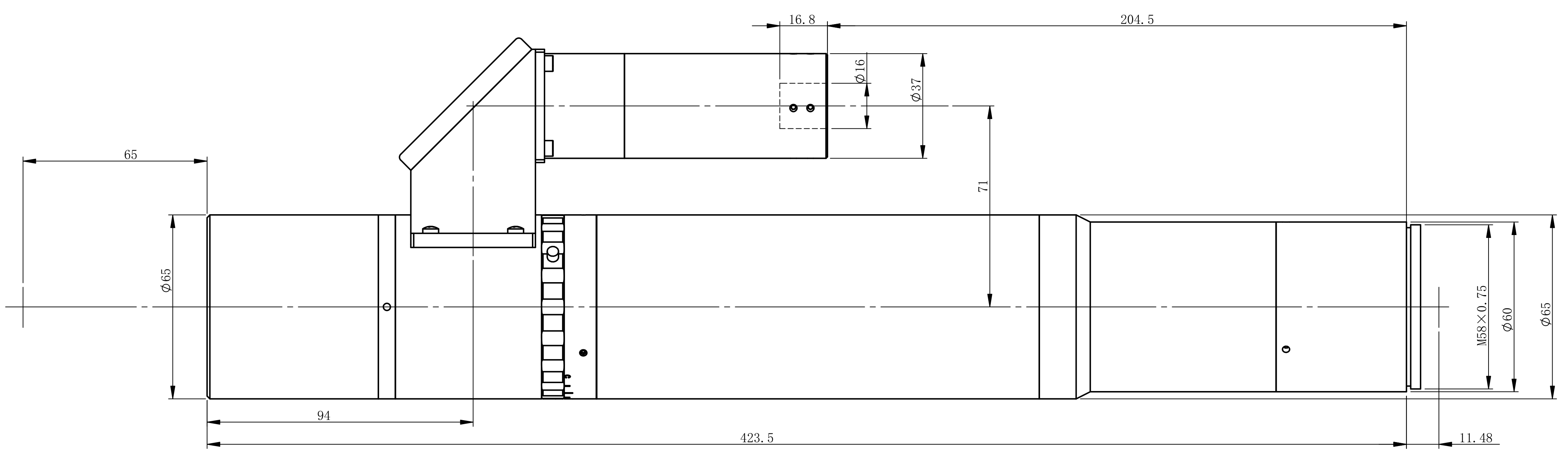

Telecentric lens 5x, WD 65 mm, 5x, WD 65 mm, M58 x 0.75-mount (LS-MDT5X65DZM-D41-VI-M58-11.48)
Model LS-MDT5X65DZM-D41-VI-M58-11.48
Telecentric lens, magnification 5, working distance 65 mm, object field dia. 8.2 mm, image field dia. 41.0 mm, M58 x 0.75 mount, with coaxial light inlet and adjustable aperture F12.2-F236.7.
Features
- Coaxial illumination inlet (requires spot light with lighting area ≥ dia. 12 mm and lighting angle ≥ ±13°, NA about 0.22)
- Adjustable iris with marked stops F236.7, F72.2, F43.0, F30.9, F24.1, F19.7, F16.6, F14.2, F12.2
- Supports 71M area sensors and 2K/4K/8K line scan sensors
Specifications
| Model | LS-MDT5X65DZM-D41-VI-M58-11.48 |
|---|---|
| Optical structure | Telecentric |
| Magnification | 5 |
| Object field of view | dia. 8.2mm |
| Image field of view | dia. 41.0mm |
| Working distance | 65mm±3% |
| Telecentricity | <0.14° |
| Depth of field | 0.06-1.1mm |
| F# | F12.2-F236.7 |
| Resolution | 1.7-31.3μm |
| MTF | >[email protected]/mm |
| Distortion | <0.068% |
| FOV with 71M (31 x 22) sensor | 6.2 x 4.4mm |
| FOV with 2' (23 x 23) sensor | 4.6 x 4.6mm |
| FOV with 7/4' (18 x 13.5) sensor | 4.5 x 3.4mm |
| FOV with 2K line scan 2048 x 10μm | 4.1mm |
| FOV with 4K line scan 4096 x 7μm | 5.7mm |
| FOV with 8K line scan 8192 x 5μm | 8.2mm |
| Mount | M58 x 0.75 |
| Body diameter (mm) | 65 |
| Overall length (mm) | 423.5 |
| Flange-side dimension (mm) | 11.48 |
| Coaxial port | dia. 37 housing, dia. 16 inlet, axis 71 mm from lens axis, 204.5 mm from mount end |
| Recommended spot light | LED spot light LS-AD1210W-45S (W/R/G/B), matched digital controller HGDC-12V10W-H2, max current 1A (steady) 2.5A (strobe), voltage 12V |
| Sensor format | dia. 41.0 mm image field |
| Aperture | F12.2-F236.7 |
| Shipping weight | 0.55 kg |
