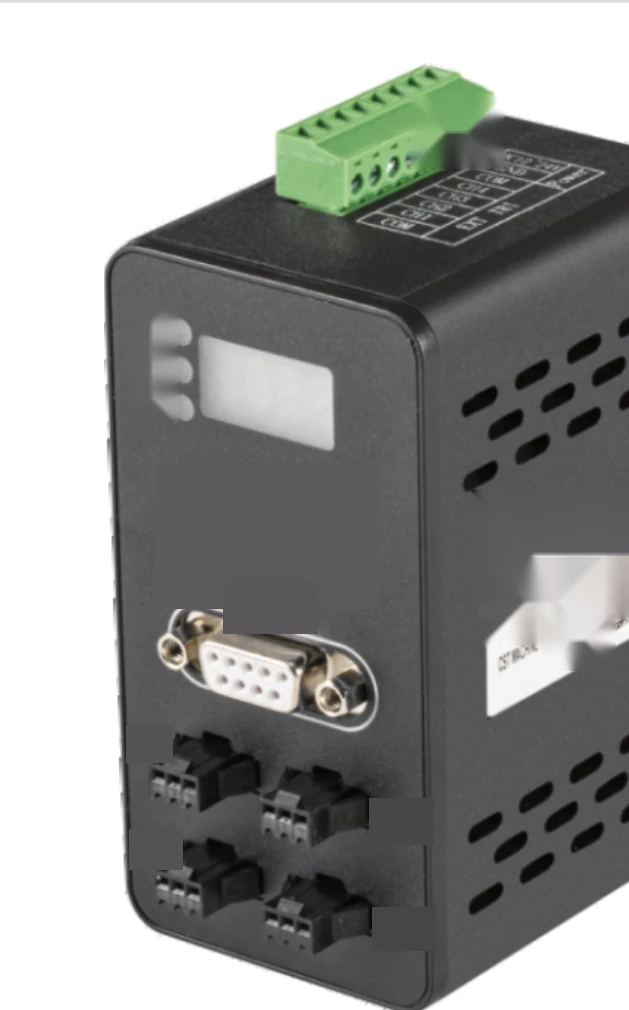

Digital controller, MDPS series, 4 ch, 75 W (LS-MDPS2475B-4TDP)
Model LS-MDPS2475B-4TDP
Small, light digital controller with switchable strobe and constant-light modes, optocoupler-isolated external trigger, power-failure memory and overload/short-circuit protection; needs an external power supply.
Features
- Small, light and flexible installation
- Strobe mode and constant light mode can be switched as required
- External trigger uses high-speed optocoupler isolation
- Power failure saving function
- Overload and short-circuit protection
Specifications
| Model | LS-MDPS2475B-4TDP |
|---|---|
| Operating temp/humidity | 0~40 °C, 20~85 %RH (non-condensing) |
| Storage temp/humidity | 20~60 °C, 20~85 %RH (non-condensing) |
| Drive method | Constant voltage |
| Light control mode | 256 degrees PWM control; panel button / RS232 |
| Input voltage | DC12~24V |
| Channel | 4 |
| Output voltage | 12~24V (relative to input voltage) |
| Max output current | 3.1A (single channel max current 3A) |
| Total power | 75W |
| Output port | SMP-03V-BC (1: output+, 2: NC, 3: output-) |
| External trigger interface | EDG3.81 |
| External voltage | DC5V~24V (current about 5.6mA) |
| External trigger delay | Strobe mode <8us, digital mode <25us |
| Cooling method | Natural cooling |
| Dimensions (mm) | 50 W x 95.9 H x 68.9 D (65.3 body) |
| Mounting | DIN rail buckle |
| Trigger port | COM, CH1-CH4, COM, GND, DC12~24V (power input on the same terminal) |
| Channels | 4 |
| Total output (W) | 75 |
| Shipping weight | 0.30 kg |
