Line scan lights

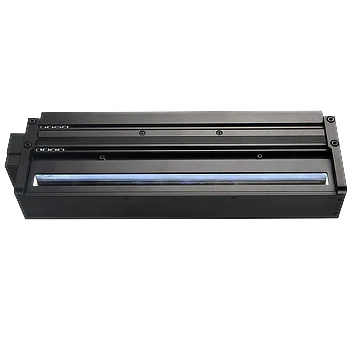

Line Scan Light, 338 mm, White (LS-LTPS-300-W)
Model LS-LTPS-300-W
Line Scan Light, 338 mm, White. Modular design: coaxial module and line light detach easily One-piece aluminum alloy housing for good heat dissipation
Features
- Modular design: coaxial module and line light detach easily
- One-piece aluminum alloy housing for good heat dissipation
- Diffuser film for excellent uniformity
- Nut slots on top and bottom for flexible mounting
Specifications
| Model | LS-LTPS-300-W |
|---|---|
| Color | White |
| Color temperature | 6000 ~ 7000K |
| Connector type | 20M-4J |
| Power | 46.1 W |
| Cable length | 500 mm |
| Dimension | 338 mm × 109 mm × 53 mm |
| Emitting area dimension | 292 mm × 17 mm |
| Temperature | Working temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) |
| Humidity | 20% to 85% RH (non-condensing) |
| Diffuse plate included | Included |
| Shipping weight (estimated) | 0.66 kg |
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guideOther sizes in the High-brightness line lights series
| Model | Size | Power | Price | Availability | |
|---|---|---|---|---|---|
| LS-LTPS-150-W | 170 mm, White | 23 W | $359.00 | 5 in stock | View |
| LS-LTPS-450-W | 470 mm, White | 69.1 W | $919.00 | 5 in stock | View |
