Line scan lights

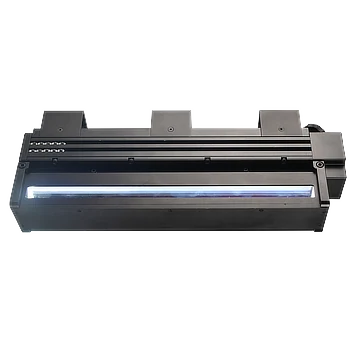

Line Scan Light, 143 mm, White (LS-LTPM-100-W)
Model LS-LTPM-100-W
Line Scan Light, 143 mm, White. Modular design: coaxial module and high-brightness line light detach easily One-piece aluminum alloy housing with fan for good heat dissipation
Features
- Modular design: coaxial module and high-brightness line light detach easily
- One-piece aluminum alloy housing with fan for good heat dissipation
- Nut slots on top and bottom for flexible mounting
Specifications
| Model | LS-LTPM-100-W |
|---|---|
| Color | White |
| Color temperature | 6000 ~ 7000K |
| Connector type | 19M-6H |
| Power | 48 W |
| Dimension | 143 mm × 128.1 mm × 57.3 mm |
| Emitting area dimension | 98 mm × 17 mm |
| Temperature | Working temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) |
| Humidity | 20% to 85% RH (non-condensing) |
| Diffuse plate included | Included |
| Cable length | 500 mm |
| Shipping weight (estimated) | 0.66 kg |
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guideOther sizes in the High-brightness line lights series
| Model | Size | Power | Price | Availability | |
|---|---|---|---|---|---|
| LS-LTPM-200-W | 243 mm, White | 96 W | $459.00 | 4 in stock | View |
| LS-LTPM-300-W | 343 mm, White | 130 W | $649.00 | 4 in stock | View |
