Line scan lights

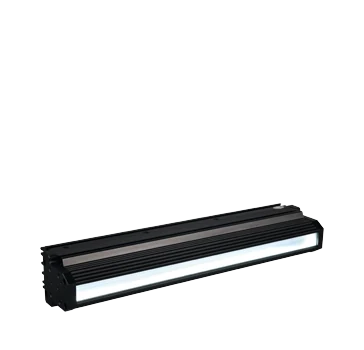

Line Scan Light, 316 mm, White (LS-LTFS-300-W)
Model LS-LTFS-300-W
Line Scan Light, 316 mm, White. Beam width as narrow as 3 mm with good directionality Special optical film for good uniformity
Features
- Beam width as narrow as 3 mm with good directionality
- Special optical film for good uniformity
Specifications
| Model | LS-LTFS-300-W |
|---|---|
| Color | White |
| Color temperature | 6000~7000K |
| Connector type | SMR-03V-B |
| Power | 50.4 W |
| LED rows | 1 |
| Cable length | 500 mm |
| Dimension | 316 mm × 53 mm × 81.8 mm |
| Emitting area dimension | 300 mm × 17 mm |
| Temperature | Working temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) |
| Humidity | 20% to 85% RH (non-condensing) |
| Diffuse plate included | Included |
| Shipping weight (estimated) | 0.66 kg |
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guideOther sizes in the High-brightness line lights series
| Model | Size | Power | Price | Availability | |
|---|---|---|---|---|---|
| LS-LTFS-100-W | 116 mm, White | 16.8 W | $279.00 | 5 in stock | View |
| LS-LTFS-200-W | 216 mm, White | 33.6 W | $469.00 | 2 in stock | View |
