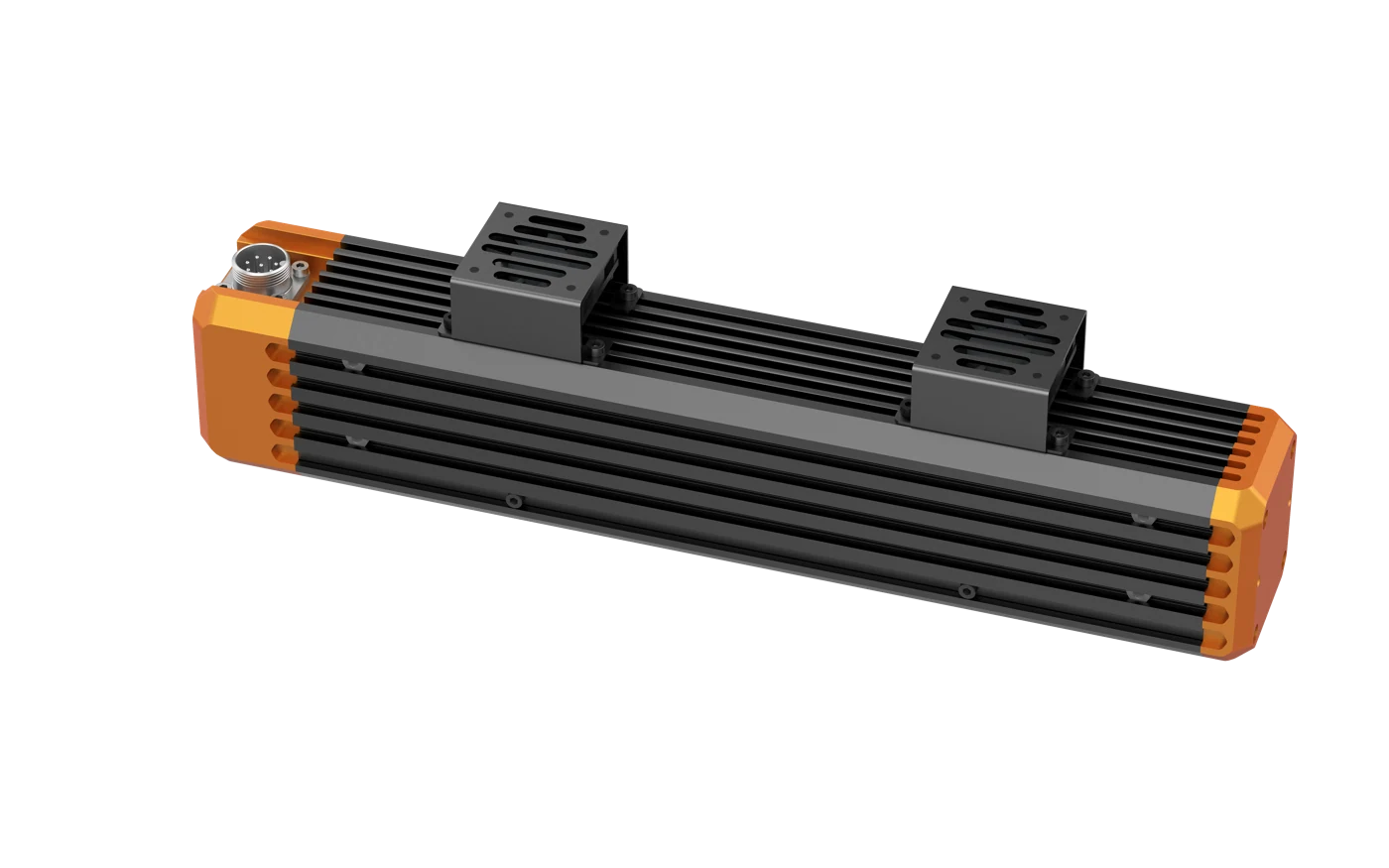

Line Scan Light, 1400 mm, White (LS-LTDS-H-1400-W)
Model LS-LTDS-H-1400-W
Line Scan Light, 1400 mm, White. Provides high-power LED lamp beads combined with a highly focusing structure to achieve the illuminance of up to 1000K lux on the surface of light source. Improves the service life of the light source with a cooling fan on the enclosure.
Features
- Provides high-power LED lamp beads combined with a highly focusing structure to achieve the illuminance of up to 1000K lux on the surface of light source.
- Improves the service life of the light source with a cooling fan on the enclosure.
- Supports flexible installation with multi-side nut slots.
Specifications
| Model | LS-LTDS-H-1400-W |
|---|---|
| Color | White |
| Best working distance | 10 mm to 200 mm |
| Color temperature | 6000K to 7000K |
| Center illuminance/irradiance | ≥ 600K lux@100 mm |
| Power | 588 W |
| Connector type | Dual-channel 19M-8H |
| Dimension | 1470 mm × 58 mm × 90.5 mm |
| Emitting area dimension | 1400 mm × 17 mm |
| LED rows | 1 |
| Weight | 7.76 kg |
| Cable length | Additional options |
| Temperature | Working temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) |
| Humidity | 20% RH to 90% RH (no condensation) |
| Shipping weight (estimated) | 10.96 kg |
Complete the station
Drive the light from a light controller and pair it with a lens for your field of view and working distance.
Light controllers LensesSelection guideOther sizes in the High-brightness line lights series
| Model | Size | Power | Price | Availability | |
|---|---|---|---|---|---|
| LS-LTDS-H-100-W | 100 mm, White | 42 W | $279.00 | 3 in stock | View |
| LS-LTDS-H-200-W | 200 mm, White | 84 W | $469.00 | 4 in stock | View |
| LS-LTDS-H-300-W | 300 mm, White | 126 W | $659.00 | 2 in stock | View |
| LS-LTDS-H-400-W | 400 mm, White | 168 W | $839.00 | 2 in stock | View |
| LS-LTDS-H-500-W | 500 mm, White | 210 W | $1,029.00 | 2 in stock | View |
| LS-LTDS-H-600-W | 600 mm, White | 252 W | $1,219.00 | 3 in stock | View |
| LS-LTDS-H-700-W | 700 mm, White | 294 W | $1,409.00 | 3 in stock | View |
| LS-LTDS-H-800-W | 800 mm, White | 336 W | $1,599.00 | 3 in stock | View |
| LS-LTDS-H-900-W | 900 mm, White | 378 W | $1,789.00 | 5 in stock | View |
| LS-LTDS-H-1000-W | 1000 mm, White | 420 W | $1,979.00 | 3 in stock | View |
| LS-LTDS-H-1100-W | 1100 mm, White | 462 W | $2,169.00 | 2 in stock | View |
| LS-LTDS-H-1200-W | 1200 mm, White | 504 W | $2,359.00 | 4 in stock | View |
| LS-LTDS-H-1300-W | 1300 mm, White | 546 W | $2,549.00 | 5 in stock | View |
| LS-LTDS-H-1500-W | 1500 mm, White | 630 W | $2,919.00 | 5 in stock | View |
