Line scan lights

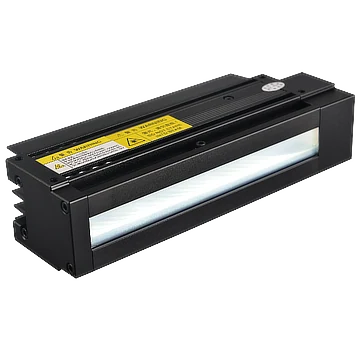

Line Scan Light, 338 mm, White (LS-LTDS-300-W)
Model LS-LTDS-300-W
Line Scan Light, 338 mm, White. One-piece aluminum alloy housing for good heat dissipation Added diffuser film for good uniformity
Features
- One-piece aluminum alloy housing for good heat dissipation
- Added diffuser film for good uniformity
- Nut slots on top and bottom for flexible mounting
Specifications
| Model | LS-LTDS-300-W |
|---|---|
| Color | White |
| Color temperature | 6000~7000K |
| Connector type | 20M-4J |
| Power | 46.1 W |
| LED rows | 1 |
| Cable length | 500 mm |
| Dimension | 338 mm × 45 mm × 49.8 mm |
| Emitting area dimension | 300 mm × 17 mm |
| Temperature | Working temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) |
| Humidity | 20% to 85% RH (non-condensing) |
| Diffuse plate included | Included |
| Shipping weight (estimated) | 0.66 kg |
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guideOther sizes in the Classic line lights series
| Model | Size | Power | Price | Availability | |
|---|---|---|---|---|---|
| LS-LTDS-150-W | 188 mm, White | 23 W | $369.00 | 3 in stock | View |
| LS-LTDS-450-W | 488 mm, White | 69.1 W | $939.00 | 5 in stock | View |
| LS-LTDS-600-W | 638 mm, White | 92.2 W | $1,219.00 | 5 in stock | View |
| LS-LTDS-750-W | 788 mm, White | 115.2 W | $1,509.00 | 3 in stock | View |
| LS-LTDS-750-DW | 788 mm | 115.2 W | $1,509.00 | 5 in stock | View |
| LS-LTDS-1200-W | 1256 mm, White | 184.3 W | $2,359.00 | 3 in stock | View |
| LS-LTDS-1350-W | 1406 mm, White | 207.4 W | Price on request | 3 in stock | View |
| LS-LTDS-1500-W | 1556 mm, White | 230.4 W | $2,919.00 | 5 in stock | View |
| LS-LTDS-1800-W | 1856 mm, White | 276.5 W | $3,489.00 | 5 in stock | View |
