Bar lights

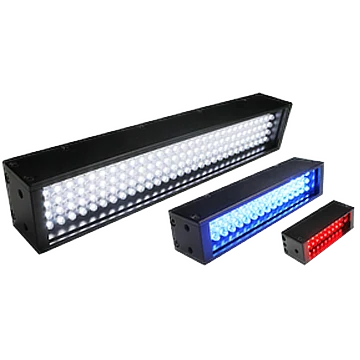

Bar Light, 237 x 38 mm, White (LS-LT-237-38-W)
Model LS-LT-237-38-W
Bar Light, 237 x 38 mm, White. One-piece aluminum alloy body for good heat dissipation Multiple mounting options: both ends and back
Features
- One-piece aluminum alloy body for good heat dissipation
- Multiple mounting options: both ends and back
- High-quality LEDs with high brightness
Specifications
| Model | LS-LT-237-38-W |
|---|---|
| Color | White |
| Color temperature | 6000~7000K |
| Connector type | SMR-03V-B |
| Power | 19.5 W |
| LED rows | 6 |
| Cable length | 500 mm |
| Dimension | 237 mm × 38 mm × 27 mm |
| Emitting area length | 225 mm × 32 mm |
| Temperature | Working temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) |
| Humidity | 20% to 85% RH (non-condensing) |
| Diffuse plate included | Included |
| Shipping weight (estimated) | 0.66 kg |
| Supply voltage (derived) | 24 V DC, derived: all 172 bar lights of this range that state a voltage are rated 24 V |
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guide
