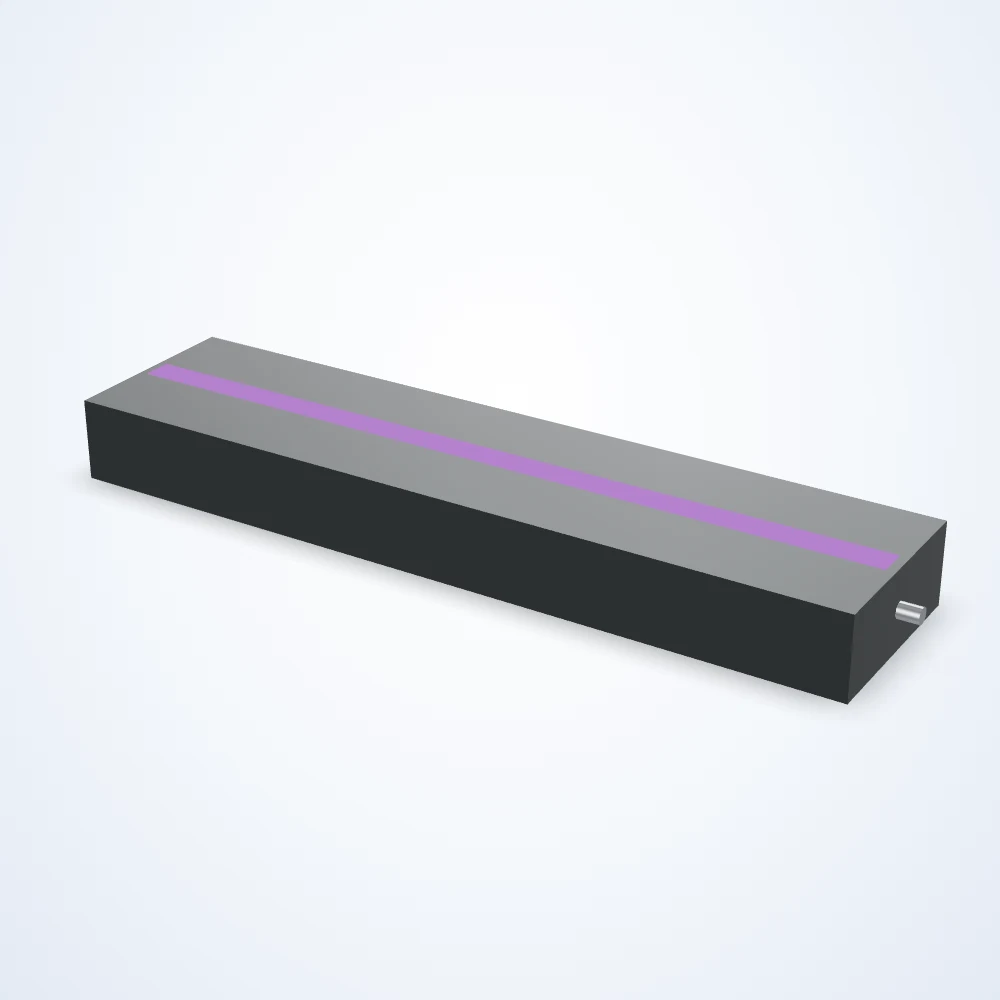

Rendered illustration: the actual product may differ in appearance.
Line scan lights
Line scan light, 596 mm lit length (LS-LSC-0022)
Model LS-LSC-0022
High-intensity line light for line scan cameras on moving webs and conveyors. Lit area 596 x 21.8 mm; 24 VDC supply; connection: 5 pin m12 male a-coded. Choose colour, lens / beam angle below (20 configurations) and request a quote.
Specifications
| Model | LS-LSC-0022 |
|---|---|
| Lit length (mm) | 596 |
| Lit width (mm) | 21.8 |
| Length (mm) | 609.1 |
| Width (mm) | 148.4 |
| Height (mm) | 62.6 |
| Voltage | 24 VDC |
| Connector | 5 Pin M12 Male A-Coded |
| Connection at light | Connectorized |
| Driver included | Included |
| Driver location | Internal |
| Operating modes | Constant On |
| Strobe trigger input | Constant On Only |
| Operating temperature | -10 to 40 °C |
| IP rating | IP50 |
| Housing | Aluminum |
| Mounting | T-Slot Channels |
| Collimated | Not Collimated |
| Daisy chain | No |
| Diffused | Not Diffused |
| Direct connect | Yes |
| Driver nomenclature | SVL LCHPX Driver |
| Maximum constant on current (ma) | 3200 |
| Maximum duty cycle (%) | 100 |
| Maximum input power constant on (w) | 76.8 |
| Polarized | Not Polarized |
| Storage temperature | -20 to 70 °C |
| Compliance | CE, IEC 62471, RoHS |
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guide
