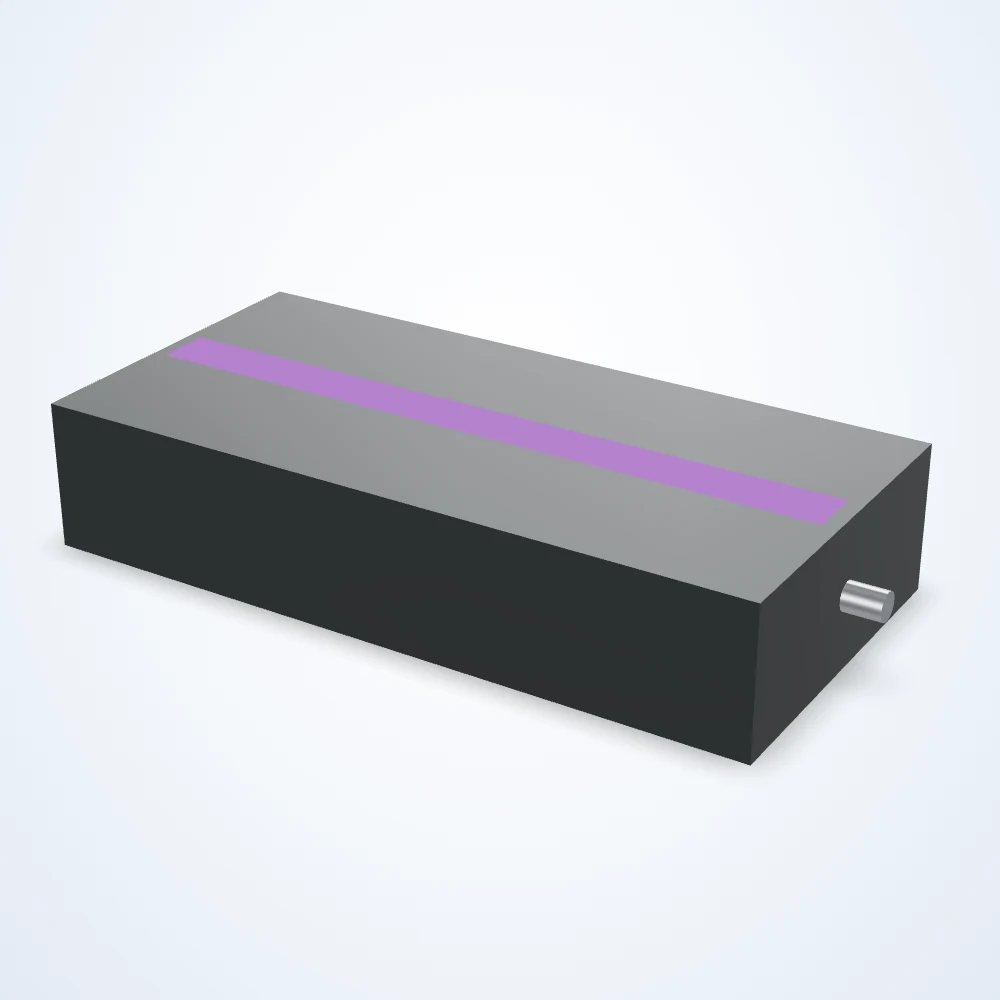

Rendered illustration: the actual product may differ in appearance.
Line scan lights
309.1 x 148.4 mm line scan light (LS-LSC-0021)
Model LS-LSC-0021
309.1 x 148.4 mm line scan light. Lit area 296 x 21.8 mm. Connection: 5 Pin M12 Male A-Coded. Available in 20 configurations (color, lens angle); choose one below and request a quote.
Specifications
| Model | LS-LSC-0021 |
|---|---|
| Active Length (mm) | 296 |
| Active Width (mm) | 21.8 |
| Collimated | Not Collimated |
| Compliances | CE, IEC 62471, RoHS |
| Connector Type | 5 Pin M12 Male A-Coded |
| Connectorized At Light | Connectorized |
| Daisy Chain | No |
| Direct Connect | No |
| Driver Included | Included |
| Driver Location | Internal |
| Driver Nomenclature | SVL LCHPX Driver |
| Height (mm) | 62.6 |
| Housing Material | Aluminum |
| IP Rating | IP50 |
| Length (mm) | 309.1 |
| Maximum Constant On Current (mA) | 1600 |
| Maximum Duty Cycle (%) | 100 |
| Maximum Input Power Constant On (W) | 38.4 |
| Maximum Operating Temperature (C) | 40 |
| Maximum Operating Temperature (F) | 104 |
| Maximum Storage Temperature (C) | 70 |
| Maximum Storage Temperature (F) | 158 |
| Minimum Operating Temperature (C) | -10 |
| Minimum Operating Temperature (F) | 14 |
| Minimum Storage Temperature (C) | -20 |
| Minimum Storage Temperature (F) | -4 |
| Mounting Method | T-Slot Channels |
| Operation Modes | Constant On |
| Polarized | Not Polarized |
| Product Weight (Kg) | 2 |
| Product Weight (Lbs) | 4.41 |
| Strobe Trigger Input | Constant On Only |
| Voltage | 24 VDC |
| Width (mm) | 148.4 |
