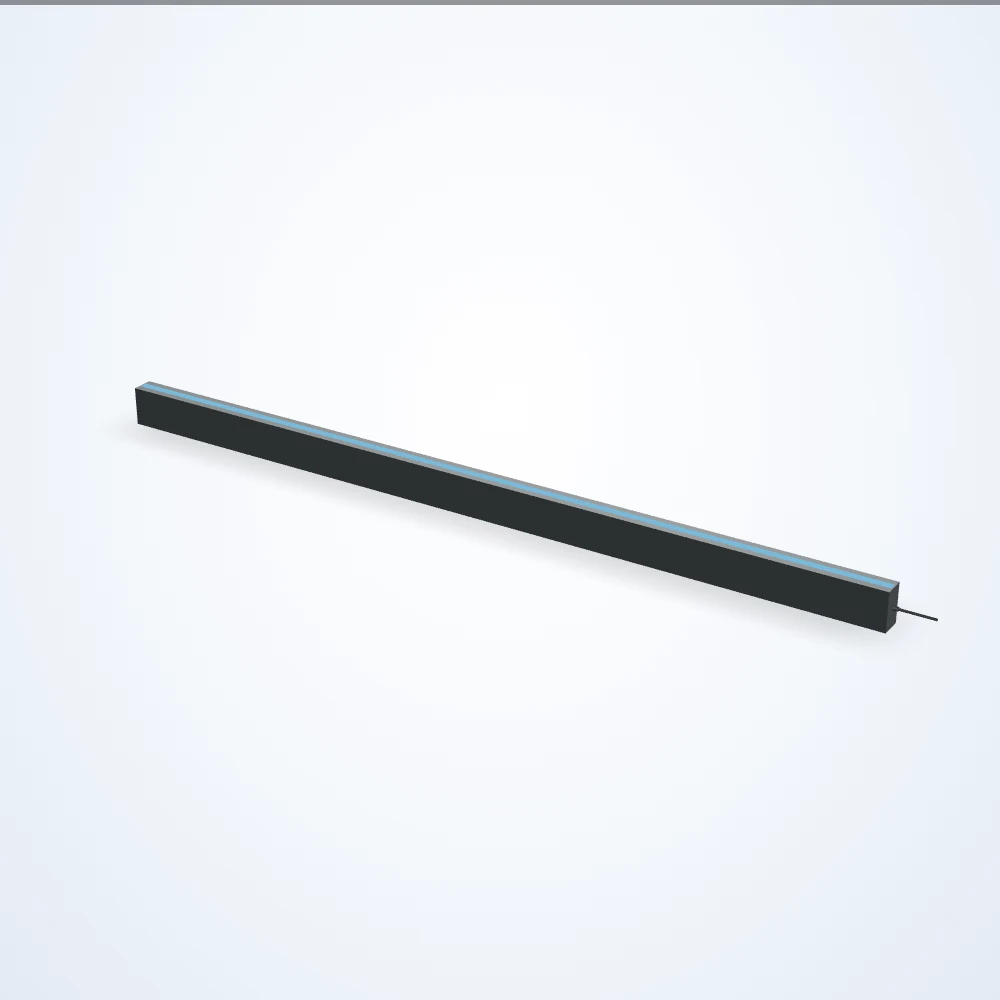

Rendered illustration: the actual product may differ in appearance.
Line scan lights
1885.7 x 50.2 mm line scan light (LS-LSC-0013)
Model LS-LSC-0013
1885.7 x 50.2 mm line scan light. Lit area 1879.6 x 25.9 mm. Connection: Flying Leads. Available in 4 configurations (color); choose one below and request a quote.
Specifications
| Model | LS-LSC-0013 |
|---|---|
| Active Length (mm) | 1879.6 |
| Active Width (mm) | 25.9 |
| Cable Length (mm) | 2000 |
| Collimated | Not Collimated |
| Compliances | CE, IEC 62471, RoHS |
| Connector Type | Flying Leads |
| Connectorized At Light | Hardwired |
| Daisy Chain | No |
| Direct Connect | No |
| Driver Included | No Driver Required |
| Driver Location | No Driver |
| Driver Nomenclature | 24V |
| Height (mm) | 90.7 |
| Housing Material | Aluminum |
| IP Rating | IP50 |
| Length (mm) | 1885.7 |
| Maximum Constant On Current (mA) | 9404 |
| Maximum Duty Cycle (%) | 100 |
| Maximum Input Power Constant On (W) | 225.7 |
| Maximum Operating Temperature (C) | 60 |
| Maximum Operating Temperature (F) | 140 |
| Minimum Operating Temperature (F) | 32 |
| Mounting Method | T-Slot Channel |
| Operation Modes | Constant On |
| Polarized | Not Polarized |
| Product Weight (Kg) | 7.77 |
| Product Weight (Lbs) | 17.13 |
| Strobe Trigger Input | Not Dimmable |
| Voltage | 24 VDC |
| Width (mm) | 50.2 |
