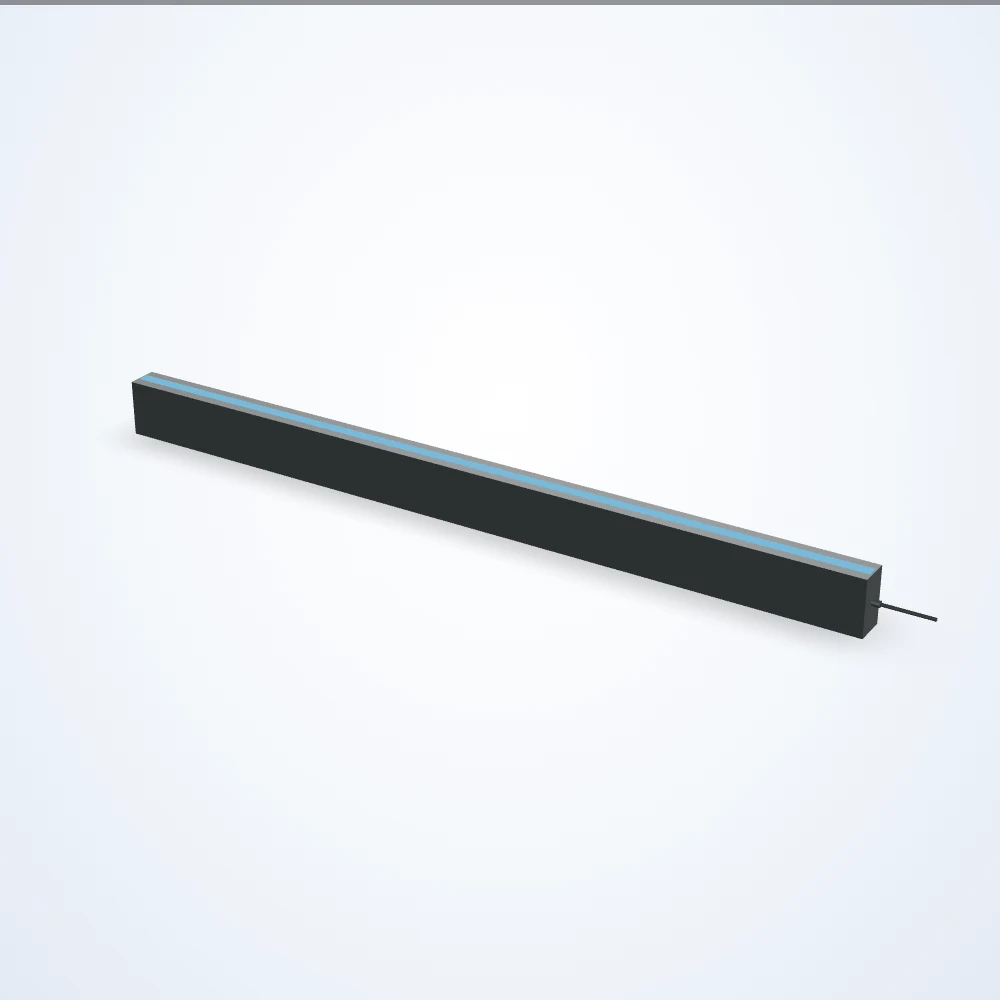

Rendered illustration: the actual product may differ in appearance.
Line scan lights
Line scan light, 1270 mm lit length (LS-LSC-0009)
Model LS-LSC-0009
High-intensity line light for line scan cameras on moving webs and conveyors. Lit area 1270 x 25.9 mm; 24 VDC supply; connection: flying leads. Choose colour below (4 configurations) and request a quote.
Specifications
| Model | LS-LSC-0009 |
|---|---|
| Lit length (mm) | 1270 |
| Lit width (mm) | 25.9 |
| Length (mm) | 1276 |
| Width (mm) | 50.2 |
| Height (mm) | 90.7 |
| Voltage | 24 VDC |
| Connector | Flying Leads |
| Connection at light | Hardwired |
| Cable length (mm) | 2000 |
| Driver included | No Driver Required |
| Driver location | No Driver |
| Operating modes | Constant On |
| Strobe trigger input | Not Dimmable |
| Operating temperature | up to 60 °C |
| IP rating | IP50 |
| Housing | Aluminum |
| Mounting | T-Slot Channel |
| Collimated | Not Collimated |
| Daisy chain | No |
| Diffused | Not Diffused |
| Direct connect | No |
| Driver nomenclature | 24V |
| Maximum constant on current (ma) | 6364 |
| Maximum duty cycle (%) | 100 |
| Maximum input power constant on (w) | 152.7 |
| Polarized | Not Polarized |
| Compliance | CE, IEC 62471, RoHS |
