Ring lights

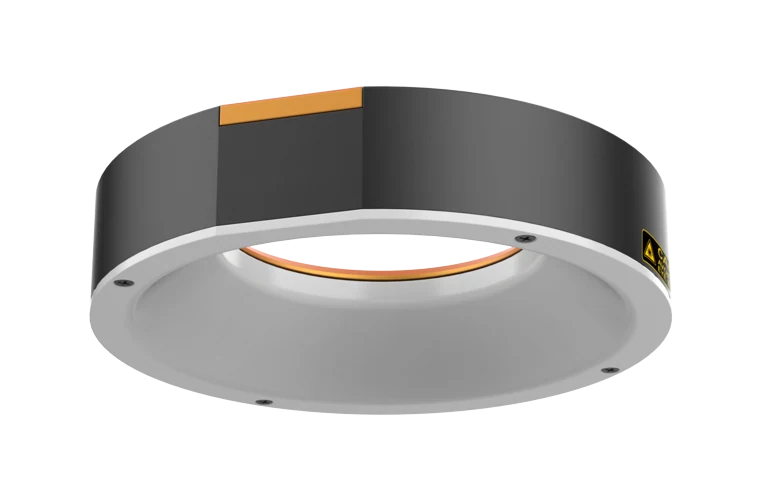

Ring Light, 200 mm dia., White (LS-LRSS-H-200-W)
Model LS-LRSS-H-200-W
Ring Light, 200 mm dia., White. Provides high uniformity illumination. Supports various sizes of outer diameter.
Features
- Provides high uniformity illumination.
- Supports various sizes of outer diameter.
Specifications
| Model | LS-LRSS-H-200-W |
|---|---|
| Color | White |
| Center illuminance | ≥19000 Lux@WD=100 mm |
| Best working distance | 30~80 mm |
| Color temperature | 6000 ~ 7000K |
| Power | 21.8 W |
| Connector type | SMR-03V-B |
| Dimension | Φ200 mm × 34 mm |
| Bore dimension | Φ148 mm |
| Emitting area length | Φ186 mm |
| LED rows | 1 |
| Weight | 564 g |
| Cable length | 1 m |
| Temperature | Working temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) |
| Humidity | 20% RH to 90% RH (no condensation) |
| Diffuse plate included | PMMA |
| Shipping weight (estimated) | 0.89 kg |
Complete the station
Drive the light from a light controller and pair it with a lens for your field of view and working distance.
Light controllers LensesSelection guideOther sizes in the Standard ring lights series
| Model | Size | Power | Price | Availability | |
|---|---|---|---|---|---|
| LS-LRSS-H-80-W | 80 mm dia., White | 8.7 W | $139.00 | 2 in stock | View |
| LS-LRSS-H-120-W | 120 mm dia., White | 13.1 W | $189.00 | 4 in stock | View |
| LS-LRSS-H-160-W | 160 mm dia., White | 17.4 W | $239.00 | 5 in stock | View |
| LS-LRSS-H-250-W | 250 mm dia., White | 26.2 W | $369.00 | 3 in stock | View |
| LS-LRSS-H-300-W | 300 mm dia., White | 30.5 W | $439.00 | 5 in stock | View |
