Ring lights

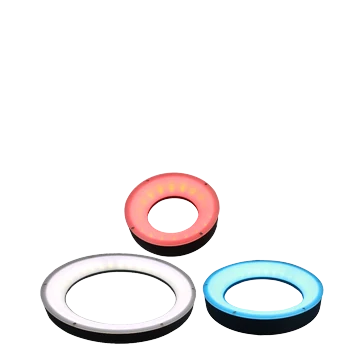

Ring Light, 196 mm dia., White (LS-LRSS-196-W)
Model LS-LRSS-196-W
Ring Light, 196 mm dia., White. Wide-angle SMD LEDs for high uniformity Available in custom single-color and multi-color versions
Features
- Wide-angle SMD LEDs for high uniformity
- Available in custom single-color and multi-color versions
Specifications
| Model | LS-LRSS-196-W |
|---|---|
| Color | White |
| Color temperature | 6000 ~ 7000K |
| Connector type | SMR-03V-B |
| Power | 21 W |
| LED rows | 1 |
| Cable length | 500 mm |
| Dimension | Φ196 mm × 25.5 mm |
| Outer dimension | Φ196 mm |
| Bore dimension | Φ146 mm |
| Emitting area length | Φ180 mm |
| Temperature | Working temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) |
| Humidity | 20% to 85% RH (non-condensing) |
| Diffuse plate included | Included |
| Shipping weight (estimated) | 0.66 kg |
| Supply voltage (derived) | 24 V DC, derived: all 145 ring lights of this range that state a voltage are rated 24 V |
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guideOther sizes in the Classic ring lights series
| Model | Size | Power | Price | Availability | |
|---|---|---|---|---|---|
| LS-LRSS-80-W | 80 mm dia., White | 7.7 W | $139.00 | 5 in stock | View |
| LS-LRSS-80-R | 80 mm dia., Red | 7.7 W | $139.00 | 5 in stock | View |
| LS-LRSS-116-W | 116 mm dia., White | 11.8 W | $179.00 | 4 in stock | View |
| LS-LRSS-116-B | 116 mm dia., Blue | 11.8 W | $179.00 | 2 in stock | View |
| LS-LRSS-116-R | 116 mm dia., Red | 8.4 W | $179.00 | 3 in stock | View |
