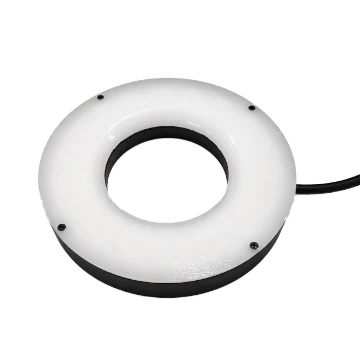

Ring Light, 80 mm dia., 30°, Red (LS-LRDS-H-80-30-R2)
Model LS-LRDS-H-80-30-R2
Ring Light, 80 mm dia., 30°, Red. Adopts high-density LED array design. Provides models with various outer dimensions and irradiation angles.
Features
- Adopts high-density LED array design.
- Provides models with various outer dimensions and irradiation angles.
- Adopts compact structure with good heat dissipation design.
- Provides diffuse plate to improve lighting uniformity.
Specifications
| Model | LS-LRDS-H-80-30-R2 |
|---|---|
| Color | Red |
| Center illuminance | ≥4500 Lux@WD=100 mm |
| Best working distance | 20 ~ 30 mm |
| Irradiation angle | 30° |
| Wavelength | 630 nm |
| Power | 9.1 W |
| Connector type | SMR-03V-B |
| Dimension | Φ80 mm × 16 mm |
| Outer dimension | Φ80 mm |
| Bore dimension | Φ35 mm |
| Emitting area length | Φ72 mm |
| LED rows | 1 |
| Weight | 110 g |
| Cable length | 1 m |
| Humidity | 20% RH to 90% RH (no condensation) |
| Temperature | Working temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) |
| Diffuse plate included | PMMA |
| Shipping weight (estimated) | 0.25 kg |
Complete the station
Drive the light from a light controller and pair it with a lens for your field of view and working distance.
Light controllers LensesSelection guideOther sizes in the Angled ring lights series
| Model | Size | Power | Price | Availability | |
|---|---|---|---|---|---|
| LS-LRDS-H-65-60-R2 | 65 mm dia., 60°, Red | 8.4 W | $109.00 | 4 in stock | View |
| LS-LRDS-H-65-60-B2 | 65 mm dia., 60°, Blue | 7.7 W | $109.00 | 3 in stock | View |
| LS-LRDS-H-65-90-W2 | 65 mm dia., 90°, White | 4.9 W | $109.00 | 3 in stock | View |
| LS-LRDS-H-65-90-R2 | 65 mm dia., 90°, Red | 3.5 W | $109.00 | 4 in stock | View |
| LS-LRDS-H-65-90-B2 | 65 mm dia., 90°, Blue | 3.7 W | $109.00 | 2 in stock | View |
| LS-LRDS-H-73-90-W2 | 73 mm dia., 90°, White | 6.4 W | $129.00 | 4 in stock | View |
| LS-LRDS-H-73-90-R2 | 73 mm dia., 90°, Red | 4.6 W | $129.00 | 5 in stock | View |
| LS-LRDS-H-73-90-B2 | 73 mm dia., 90°, Blue | 5 W | $129.00 | 2 in stock | View |
| LS-LRDS-H-80-15-W2 | 80 mm dia., 15°, White | 12.9 W | $139.00 | 4 in stock | View |
| LS-LRDS-H-80-15-R2 | 80 mm dia., 15°, Red | 9.1 W | $139.00 | 3 in stock | View |
| LS-LRDS-H-80-15-B2 | 80 mm dia., 15°, Blue | 10.4 W | $139.00 | 4 in stock | View |
| LS-LRDS-H-80-30-W2 | 80 mm dia., 30°, White | 12.9 W | $139.00 | 5 in stock | View |
| LS-LRDS-H-80-30-B2 | 80 mm dia., 30°, Blue | 10.3 W | $139.00 | 2 in stock | View |
| LS-LRDS-H-80-60-W2 | 80 mm dia., 60°, White | 12.9 W | $139.00 | 2 in stock | View |
| LS-LRDS-H-80-60-R2 | 80 mm dia., 60°, Red | 9.1 W | $139.00 | 4 in stock | View |
| LS-LRDS-H-80-60-B2 | 80 mm dia., 60°, Blue | 10.4 W | $139.00 | 5 in stock | View |
| LS-LRDS-H-80-90-W2 | 80 mm dia., 90°, White | 9.9 W | $139.00 | 3 in stock | View |
| LS-LRDS-H-80-90-R2 | 80 mm dia., 90°, Red | 6.9 W | $139.00 | 5 in stock | View |
| LS-LRDS-H-80-90-B2 | 80 mm dia., 90°, Blue | 7.7 W | $139.00 | 4 in stock | View |
| LS-LRDS-H-95-0-W2 | 95 mm dia., 0°, White | 5.3 W | $159.00 | 2 in stock | View |
| LS-LRDS-H-95-0-R2 | 95 mm dia., 0°, Red | 3.2 W | $159.00 | 4 in stock | View |
| LS-LRDS-H-95-0-B2 | 95 mm dia., 0°, Blue | 4 W | $159.00 | 5 in stock | View |
| LS-LRDS-H-95-30-W2 | 95 mm dia., 30°, White | 14.8 W | $159.00 | 5 in stock | View |
| LS-LRDS-H-95-30-R2 | 95 mm dia., 30°, Red | 8.9 W | $159.00 | 2 in stock | View |
