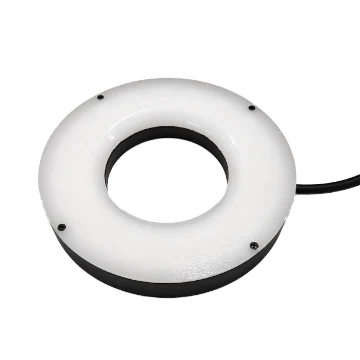

Ring Light, 160 mm dia., 90°, Red (LS-LRDS-H-160-90-R2)
Model LS-LRDS-H-160-90-R2
Ring Light, 160 mm dia., 90°, Red. Adopts high-density LED array design. Provides models with various outer dimensions and irradiation angles.
Features
- Adopts high-density LED array design.
- Provides models with various outer dimensions and irradiation angles.
- Adopts compact structure with good heat dissipation design.
- Provides diffuse plate to improve lighting uniformity.
Specifications
| Model | LS-LRDS-H-160-90-R2 |
|---|---|
| Color | Red |
| Center illuminance | ≥9000 Lux@WD=100 mm |
| Best working distance | 120 ~ 140 mm |
| Irradiation angle | 90° |
| Wavelength | 630 nm |
| Power | 19.3 W |
| Connector type | SMR-03V-B |
| Dimension | Φ160 mm × 18 mm |
| Outer dimension | Φ160 mm |
| Bore dimension | Φ90 mm |
| Emitting area length | Φ147 mm |
| LED rows | 5 |
| Weight | 440 g |
| Cable length | 1 m |
| Humidity | 20% RH to 90% RH (no condensation) |
| Temperature | Working temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) |
| Diffuse plate included | PMMA |
| Shipping weight (estimated) | 0.72 kg |
Complete the station
Drive the light from a light controller and pair it with a lens for your field of view and working distance.
Light controllers LensesSelection guideOther sizes in the Angled ring lights series
| Model | Size | Power | Price | Availability | |
|---|---|---|---|---|---|
| LS-LRDS-H-140-90-R2 | 140 mm dia., 90°, Red | 14.7 W | $219.00 | 4 in stock | View |
| LS-LRDS-H-140-90-B2 | 140 mm dia., 90°, Blue | 17.6 W | $219.00 | 5 in stock | View |
| LS-LRDS-H-160-0-R2 | 160 mm dia., 0°, Red | 6.7 W | $239.00 | 4 in stock | View |
| LS-LRDS-H-160-0-B2 | 160 mm dia., 0°, Blue | 7.8 W | $239.00 | 2 in stock | View |
| LS-LRDS-H-160-0-W2 | 160 mm dia., 0°, White | 10.2 W | $239.00 | 3 in stock | View |
| LS-LRDS-H-160-90-W2 | 160 mm dia., 90°, White | 27.5 W | $239.00 | 2 in stock | View |
| LS-LRDS-H-160-30-W2 | 160 mm dia., 30°, White | 36.4 W | $239.00 | 3 in stock | View |
| LS-LRDS-H-160-30-R2 | 160 mm dia., 30°, Red | 25.4 W | $239.00 | 2 in stock | View |
| LS-LRDS-H-160-30-B2 | 160 mm dia., 30°, Blue | 31.2 W | $239.00 | 2 in stock | View |
| LS-LRDS-H-160-60-W2 | 160 mm dia., 60°, White | 36.4 W | $239.00 | 5 in stock | View |
| LS-LRDS-H-160-60-R2 | 160 mm dia., 60°, Red | 25.4 W | $239.00 | 2 in stock | View |
| LS-LRDS-H-160-60-B2 | 160 mm dia., 60°, Blue | 31.2 W | $239.00 | 5 in stock | View |
| LS-LRDS-H-160-90-B2 | 160 mm dia., 90°, Blue | 21.1 W | $239.00 | 3 in stock | View |
| LS-LRDS-H-180-0-W2 | 180 mm dia., 0°, White | 17.2 W | $269.00 | 4 in stock | View |
| LS-LRDS-H-180-0-R2 | 180 mm dia., 0°, Red | 12.1 W | $269.00 | 4 in stock | View |
| LS-LRDS-H-180-0-B2 | 180 mm dia., 0°, Blue | 12.5 W | $269.00 | 2 in stock | View |
| LS-LRDS-H-180-15-W2 | 180 mm dia., 15°, White | 38.5 W | $269.00 | 2 in stock | View |
| LS-LRDS-H-180-15-R2 | 180 mm dia., 15°, Red | 27.4 W | $269.00 | 4 in stock | View |
| LS-LRDS-H-180-15-B2 | 180 mm dia., 15°, Blue | 33.5 W | $269.00 | 2 in stock | View |
| LS-LRDS-H-180-45-W2 | 180 mm dia., 45°, White | 38.5 W | $269.00 | 3 in stock | View |
| LS-LRDS-H-180-45-R2 | 180 mm dia., 45°, Red | 27.4 W | $269.00 | 3 in stock | View |
| LS-LRDS-H-180-45-B2 | 180 mm dia., 45°, Blue | 33.5 W | $269.00 | 3 in stock | View |
| LS-LRDS-H-180-60-W2 | 180 mm dia., 60°, White | 38.5 W | $269.00 | 3 in stock | View |
| LS-LRDS-H-180-60-R2 | 180 mm dia., 60°, Red | 27.4 W | $269.00 | 2 in stock | View |
