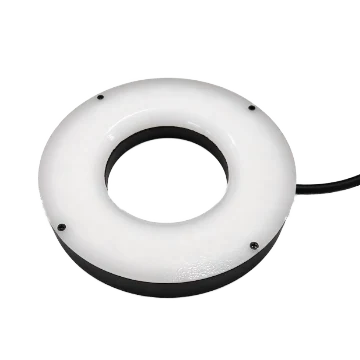

Ring Light, 105 mm dia., 30°, Red (LS-LRDS-H-105-30-R2)
Model LS-LRDS-H-105-30-R2
Ring Light, 105 mm dia., 30°, Red. Adopts high-density LED array design. Provides models with various outer dimensions and irradiation angles.
Features
- Adopts high-density LED array design.
- Provides models with various outer dimensions and irradiation angles.
- Adopts compact structure with good heat dissipation design.
- Provides diffuse plate to improve lighting uniformity.
Specifications
| Model | LS-LRDS-H-105-30-R2 |
|---|---|
| Color | Red |
| Center illuminance | ≥8000 Lux@WD=100 mm |
| Best working distance | 20 ~ 40 mm |
| Irradiation angle | 30° |
| Wavelength | 630 nm |
| Power | 11.9 W |
| Connector type | SMR-03V-B |
| Dimension | Φ105 mm × 18 mm |
| Outer dimension | Φ105 mm |
| Bore dimension | Φ43 mm |
| Emitting area length | Φ92 mm |
| LED rows | 2 |
| Weight | 230 g |
| Cable length | 1 m |
| Humidity | 20% RH to 90% RH (no condensation) |
| Temperature | Working temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) |
| Diffuse plate included | PMMA |
| Shipping weight (estimated) | 0.42 kg |
Complete the station
Drive the light from a light controller and pair it with a lens for your field of view and working distance.
