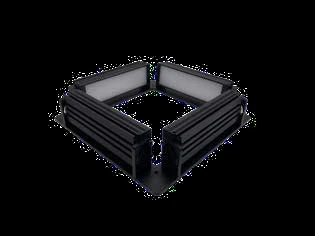

Representative photo of this series
Bar lights
231 x 35 mm Strip combination light source, 35 series (LS-LM125125-35)
Model LS-LM125125-35
Combination of four strip lights; the light angle can be freely adjusted and each bar is independently controlled. Good universality, can be freely combined; preferred for large-format lighting.
Features
- Light source angle can be freely adjusted, each bar independently controlled
- Good versatility, can be freely combined, suitable for many occasions; first choice for large-format lighting
- Size can be customized according to different needs
Specifications
| Model | LS-LM125125-35 |
|---|---|
| Voltage | 24 V DC (12 V on request) |
| Height (mm) | 46 |
| Bar emitting width (mm) | 35 |
| Mounting | 4 x M4 through |
| Cable length (mm) | 500 |
| Construction | Four-bar combination |
| Number of lamp rows | 8 |
| Overall frame size (mm) | 231 |
| Inner opening (mm) | 126 |
| Power red (W) | 6.91 |
| Power white/blue/green (W) | 8.64 |
| Overall height (mm) | 46 |
| Shipping weight | 1.70 kg |
Applications
- PCB substrate inspection
- Electronic component inspection
- Mark point positioning
- Defect detection, character detection and positioning recognition of large-format products
- Clear outline of the object with obvious contrast
